 * False Swing Arm Removal Instruction - Suzuki C800 / C50 *

Go down
+5
simbo
Mr Intruder
joolz6
raffaele.negrin
captain crash
9 posters
AuthorMessage
Mr Intruder
Suzuki800.com Founder ... & ... Senior Administrator
Mr Intruder



* False Swing Arm Removal Instruction - Suzuki C800 / C50 * Empty
PostSubject: * False Swing Arm Removal Instruction - Suzuki C800 / C50 *   * False Swing Arm Removal Instruction - Suzuki C800 / C50 * Icon_minitimeTue Mar 06, 2012 1:34 pm

This is one of the easiest mod's that can be done to the 800 and took only 15 minutes in total, which included time to get the tools out and put them away again! There is no point in having the extremely heavy false swing arm on the bike as it is their simply for cosmetic symmetry.

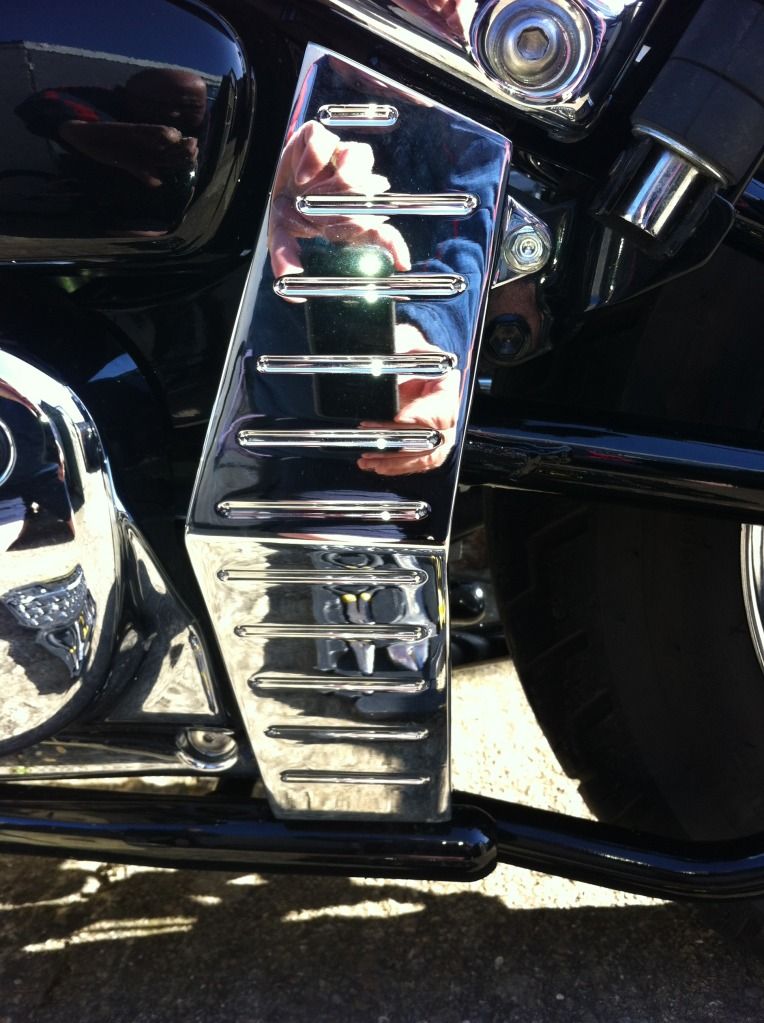

First off remove the side cover, mine is chrome but they are normally plastic. They attach with one 10mm bolt at the top and 2x push lugs. So undo the bolt and pull firmly on the cover and it will come away easily.

* False Swing Arm Removal Instruction - Suzuki C800 / C50 * IMG_0337

Now when you look behind where the cover was you will see 2x 10mm bolts that need to be removed

* False Swing Arm Removal Instruction - Suzuki C800 / C50 * IMG_0338

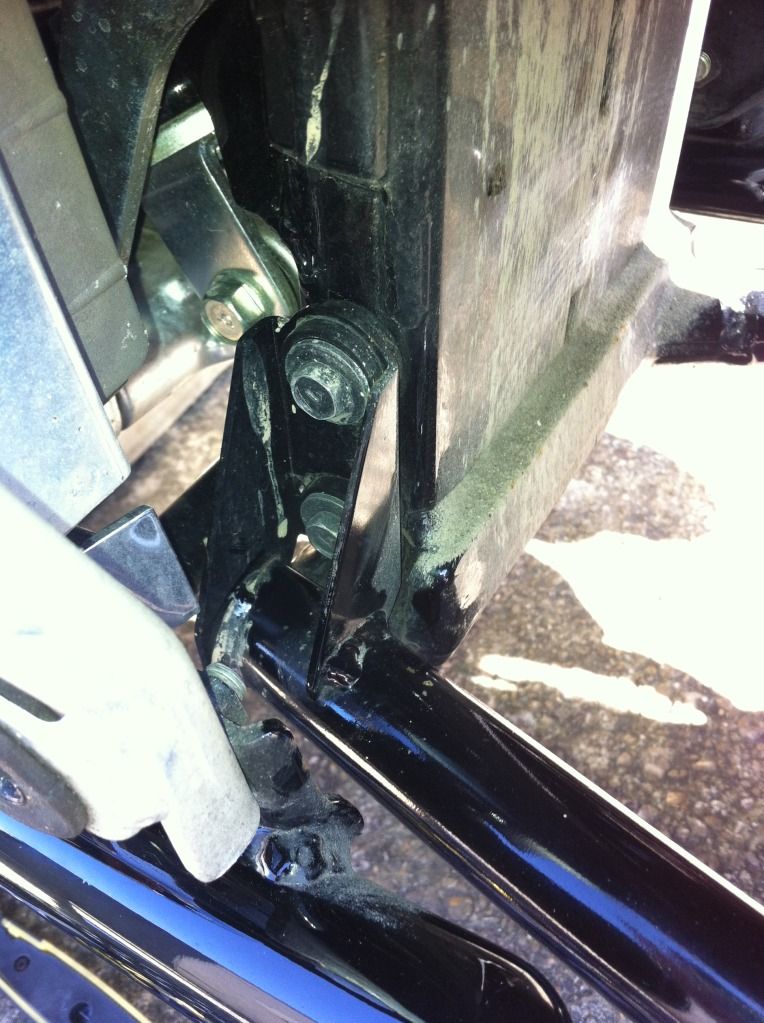

In Mistress K's thread, she said removing these was a knuckle scraper but I found that using a small socket set with an extention bar you can get to these bolts easily.

* False Swing Arm Removal Instruction - Suzuki C800 / C50 * IMG_0339

Now remove the 2x 10mm bolts that are forward facing and your nearly there.

* False Swing Arm Removal Instruction - Suzuki C800 / C50 * IMG_0340

Lastly remove the big bolt on the side using an 8mm Hex/Allen key and remove the swing arm. Replace the side cover by pushing firmly to position the 2x push lugs and secure the bolt at the top & your all done!

Before

* False Swing Arm Removal Instruction - Suzuki C800 / C50 * IMG_0336

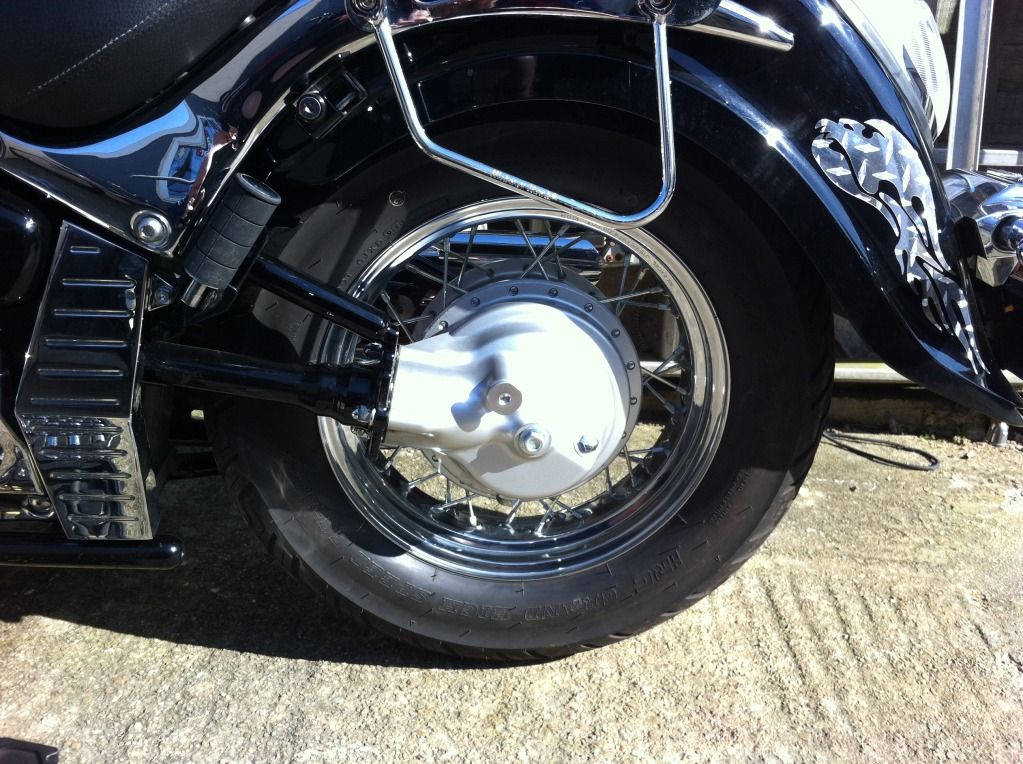

After

* False Swing Arm Removal Instruction - Suzuki C800 / C50 * IMG_0344

If you look you will see that I sprayed the 8mm Hex/Allen bolt silver to match in better, as leaving it dark grey would have made it stand out to much. I did actually spray it before I started the mod & baked it for a short time to harden the paint. At some point I will replace it with a hrome bolt.


Last edited by Mr Intruder on Sat Aug 11, 2012 10:13 pm; edited 2 times in total
Back to top Go down
captain crash
Mentally Deficient lunatic ..... & ..... Site Moderator
captain crash



* False Swing Arm Removal Instruction - Suzuki C800 / C50 * Empty
PostSubject: Re: * False Swing Arm Removal Instruction - Suzuki C800 / C50 *   * False Swing Arm Removal Instruction - Suzuki C800 / C50 * Icon_minitimeTue Mar 06, 2012 8:38 pm

Great job done Dave excellent write up as usual * False Swing Arm Removal Instruction - Suzuki C800 / C50 * 2170595768
Back to top Go down
raffaele.negrin
Member
raffaele.negrin



* False Swing Arm Removal Instruction - Suzuki C800 / C50 * Empty
PostSubject: Re: * False Swing Arm Removal Instruction - Suzuki C800 / C50 *   * False Swing Arm Removal Instruction - Suzuki C800 / C50 * Icon_minitimeSun Sep 30, 2012 4:44 pm

Very interesting! Anything that can make the bike lighter is usually a good idea. Will be trying it out :-) Did you notice any difference in handling, turning, braking...?
Back to top Go down
Mr Intruder
Suzuki800.com Founder ... & ... Senior Administrator
Mr Intruder



* False Swing Arm Removal Instruction - Suzuki C800 / C50 * Empty
PostSubject: Re: * False Swing Arm Removal Instruction - Suzuki C800 / C50 *   * False Swing Arm Removal Instruction - Suzuki C800 / C50 * Icon_minitimeSun Sep 30, 2012 6:28 pm

No change at all Raph, it serves no purpose at all.
Back to top Go down
joolz6
Member
joolz6



* False Swing Arm Removal Instruction - Suzuki C800 / C50 * Empty
PostSubject: Re: * False Swing Arm Removal Instruction - Suzuki C800 / C50 *   * False Swing Arm Removal Instruction - Suzuki C800 / C50 * Icon_minitimeThu Dec 06, 2012 9:14 pm

Feck me ! I think i will have a go at this !!

Merry Christmas to all Suzuki 800 riders !
Back to top Go down
Mr Intruder
Suzuki800.com Founder ... & ... Senior Administrator
Mr Intruder



* False Swing Arm Removal Instruction - Suzuki C800 / C50 * Empty
PostSubject: Re: * False Swing Arm Removal Instruction - Suzuki C800 / C50 *   * False Swing Arm Removal Instruction - Suzuki C800 / C50 * Icon_minitimeThu Dec 06, 2012 9:26 pm

Its a shockingly easy mod to do and cleans up the arse end & in turn makes cleaning easier. Plus its bloody heavy and serves no purpose.
Back to top Go down
simbo
* Site Guru *
simbo



* False Swing Arm Removal Instruction - Suzuki C800 / C50 * Empty
PostSubject: Re: * False Swing Arm Removal Instruction - Suzuki C800 / C50 *   * False Swing Arm Removal Instruction - Suzuki C800 / C50 * Icon_minitimeThu Dec 06, 2012 9:30 pm

On earlier models of the intruder the false swing arm was actually made of plastic.
Back to top Go down
Twojobmick
Valued VIP Member
Twojobmick



* False Swing Arm Removal Instruction - Suzuki C800 / C50 * Empty
PostSubject: Re: * False Swing Arm Removal Instruction - Suzuki C800 / C50 *   * False Swing Arm Removal Instruction - Suzuki C800 / C50 * Icon_minitimeSun Dec 16, 2012 6:44 am

simbo wrote:
On earlier models of the intruder the false swing arm was actually made of plastic.

Yep ... mine's plastic mate as you commented when you sorted my rear pegs out. It's there only to make the bike look like a hardtail but as I like the look and as mine weighs nothing, there's really no point in removing it.
Back to top Go down
captain crash
Mentally Deficient lunatic ..... & ..... Site Moderator
captain crash



* False Swing Arm Removal Instruction - Suzuki C800 / C50 * Empty
PostSubject: Re: * False Swing Arm Removal Instruction - Suzuki C800 / C50 *   * False Swing Arm Removal Instruction - Suzuki C800 / C50 * Icon_minitimeSun Dec 22, 2013 8:55 pm

Dave out of curiosity, I know you have not got the diff on that you pictured above as you now have the VS1400 diff on instead but do you still have plans to tart up the diff that this mod has now very much exposed?
Back to top Go down
Mr Intruder
Suzuki800.com Founder ... & ... Senior Administrator
Mr Intruder



* False Swing Arm Removal Instruction - Suzuki C800 / C50 * Empty
PostSubject: Re: * False Swing Arm Removal Instruction - Suzuki C800 / C50 *   * False Swing Arm Removal Instruction - Suzuki C800 / C50 * Icon_minitimeSun Dec 22, 2013 9:14 pm

Yes the exposed diff was always part of a decorative plan that as of yet I still have not done or completed my thinking on. I did have a plan but that has now gone out of the window as Marcin has exposed his skills with decals. It will now be sprayed black as it was previously going to be but now have some Maraggie decals fitted on as well before finally being lacquered. I have been at times messing with some idea's for the exposed Diff from this false swing arm removal modification. When I have finally decided on what I want, I will discuss this with Marcin & let him make it better.  * False Swing Arm Removal Instruction - Suzuki C800 / C50 * 852880 However I need to take any diff contours into consideration when completing what I want which might be simpler than I have made it sound.
Back to top Go down
Badger
Valued Member
Badger



* False Swing Arm Removal Instruction - Suzuki C800 / C50 * Empty
PostSubject: Re: * False Swing Arm Removal Instruction - Suzuki C800 / C50 *   * False Swing Arm Removal Instruction - Suzuki C800 / C50 * Icon_minitimeSun Sep 30, 2018 7:24 pm

I used a plastic, mushroom head button for the hex bolt, with a few spots of glue.
I sprayed it with Hammerite smooth silver, that, by a happy coincidence, is the exact colour match to our bike's drive casing.   nice.  * False Swing Arm Removal Instruction - Suzuki C800 / C50 * Dscf0410
Back to top Go down
bigmal
Very Valued VIP Member
bigmal



* False Swing Arm Removal Instruction - Suzuki C800 / C50 * Empty
PostSubject: Re: * False Swing Arm Removal Instruction - Suzuki C800 / C50 *   * False Swing Arm Removal Instruction - Suzuki C800 / C50 * Icon_minitimeSun Sep 30, 2018 10:17 pm

Nice work Badger! You should also win a prize for the longest gap between posts ever!
Back to top Go down
fat intruder
Very Valued VIP Member
fat intruder



* False Swing Arm Removal Instruction - Suzuki C800 / C50 * Empty
PostSubject: Re: * False Swing Arm Removal Instruction - Suzuki C800 / C50 *   * False Swing Arm Removal Instruction - Suzuki C800 / C50 * Icon_minitimeWed Oct 03, 2018 7:27 pm

looking good badger mate
Back to top Go down
Sponsored content





* False Swing Arm Removal Instruction - Suzuki C800 / C50 * Empty
PostSubject: Re: * False Swing Arm Removal Instruction - Suzuki C800 / C50 *   * False Swing Arm Removal Instruction - Suzuki C800 / C50 * Icon_minitime

Back to top Go down
