 Home built spot light bracket with measurements. Suzuki M50 / M800

Go down
4 posters
AuthorMessage
alfie92
Very Valued VIP Member
alfie92


Home built spot light bracket with measurements. Suzuki M50 / M800 Empty
PostSubject: Home built spot light bracket with measurements. Suzuki M50 / M800   Home built spot light bracket with measurements. Suzuki M50 / M800 Icon_minitimeSun Dec 23, 2012 4:14 pm

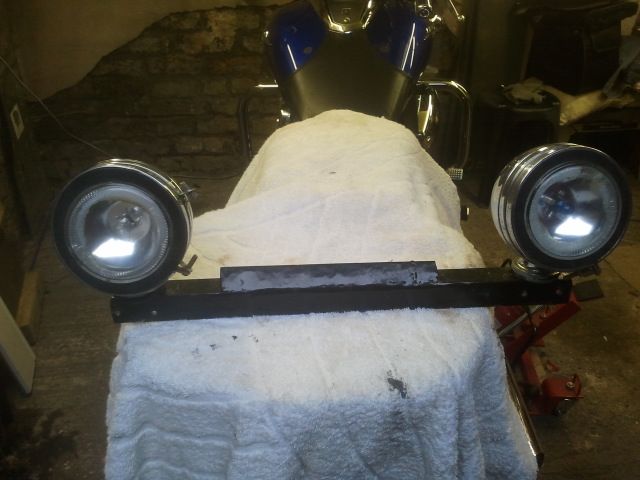

image three length = 15" overall, centre piece = 6" material used 1" angle iron.

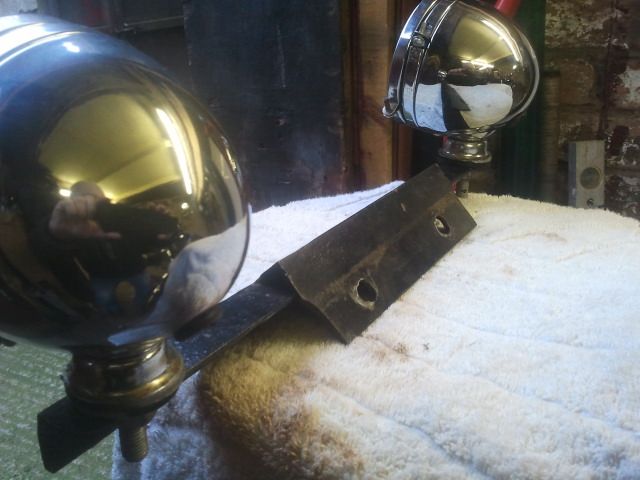

image two shows an angle of approx 60degrees,on the middle bar the reason for this is to compensate for the rake of the forks,with this method your spot lights will face at the right angle when fitted.The holes in the middle bar are for the bolts that hold the bar up under the tree,you will find four holes I used the front two.The way you fit the middle bar to your main bar is up to you,I welded mine in place.Once done it is a mod that can not be readily seen,if you have a tool roll it can be placed under it to cover the whole bracket.Another thing I done was move the indicators up to the top of the forks for more clarity.As can be seen in image one.It is an easy mod to do and will save you your hard earned cash for other trinkets.
Have a good Christmas and Happy New Year.

Home built spot light bracket with measurements. Suzuki M50 / M800 DSC_3313

Home built spot light bracket with measurements. Suzuki M50 / M800 2012-12-23145748

Home built spot light bracket with measurements. Suzuki M50 / M800 2012-12-23145736
Back to top Go down
simbo
* Site Guru *
simbo


Home built spot light bracket with measurements. Suzuki M50 / M800 Empty
PostSubject: Re: Home built spot light bracket with measurements. Suzuki M50 / M800   Home built spot light bracket with measurements. Suzuki M50 / M800 Icon_minitimeSun Dec 23, 2012 4:25 pm

Great job Alfie Home built spot light bracket with measurements. Suzuki M50 / M800 3498837457 I like the idea of the indicators higher up too Home built spot light bracket with measurements. Suzuki M50 / M800 3993731222
Back to top Go down
captain crash
Mentally Deficient lunatic ..... & ..... Site Moderator
captain crash


Home built spot light bracket with measurements. Suzuki M50 / M800 Empty
PostSubject: Re: Home built spot light bracket with measurements. Suzuki M50 / M800   Home built spot light bracket with measurements. Suzuki M50 / M800 Icon_minitimeSun Dec 23, 2012 5:03 pm

Good mod done Alfie, the front of your bike looks fantastic. Good idea with the indicators to, much more visible Home built spot light bracket with measurements. Suzuki M50 / M800 2170595768
Back to top Go down
Mr Intruder
Suzuki800.com Founder ... & ... Senior Administrator
Mr Intruder


Home built spot light bracket with measurements. Suzuki M50 / M800 Empty
PostSubject: Re: Home built spot light bracket with measurements. Suzuki M50 / M800   Home built spot light bracket with measurements. Suzuki M50 / M800 Icon_minitimeSun Dec 23, 2012 5:49 pm

Another excellent DIY project Alfie, very good work mate. Home built spot light bracket with measurements. Suzuki M50 / M800 3322349030
Of all the mods we can do, I would never have thought of doing that, very well done and executed. Home built spot light bracket with measurements. Suzuki M50 / M800 3498837457
Back to top Go down
alfie92
Very Valued VIP Member
alfie92


Home built spot light bracket with measurements. Suzuki M50 / M800 Empty
PostSubject: Re: Home built spot light bracket with measurements. Suzuki M50 / M800   Home built spot light bracket with measurements. Suzuki M50 / M800 Icon_minitimeMon Dec 24, 2012 3:20 pm

Cheers lads hope it helps our members and saves them some money for the January sales.
Back to top Go down
