 Moving suzuki C50 headlight forward 1 3/4 inches

Go down
+2
simbo
Proudtexson
6 posters
AuthorMessage
Proudtexson
VIP Member
Proudtexson


Moving suzuki C50 headlight forward 1 3/4 inches Empty
PostSubject: Moving suzuki C50 headlight forward 1 3/4 inches   Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeMon Mar 04, 2013 7:57 pm

This the procedure i used to move my C50 Headlight forward to move it out to match Batwing fairing
remove headlight rim and remove the three bolts that hold light bucket. then remove the light bracket from Tree. 2-12mm bolts

Moving suzuki C50 headlight forward 1 3/4 inches E615F862-BDC6-4527-84AA-F52E59768D4B-590-0000013C16B58F8F_zps6e37ea0c
Using the bracket as a pattern for bolt pattern. Redneck engineer a plate that will move light forward. I moved it 1 and 3/4 inches. Be sure to keep the 4 hole square with each other.
Moving suzuki C50 headlight forward 1 3/4 inches DBA6D6F2-5BE7-4D80-AD4D-AAADD8AE76F9-3630-000006B2A6BC64EC_zps72a80364
Moving suzuki C50 headlight forward 1 3/4 inches 173A9984-4AD2-4E50-9250-45EA0D261C14-3630-000006B2A4D1A155_zpsf1a5756f

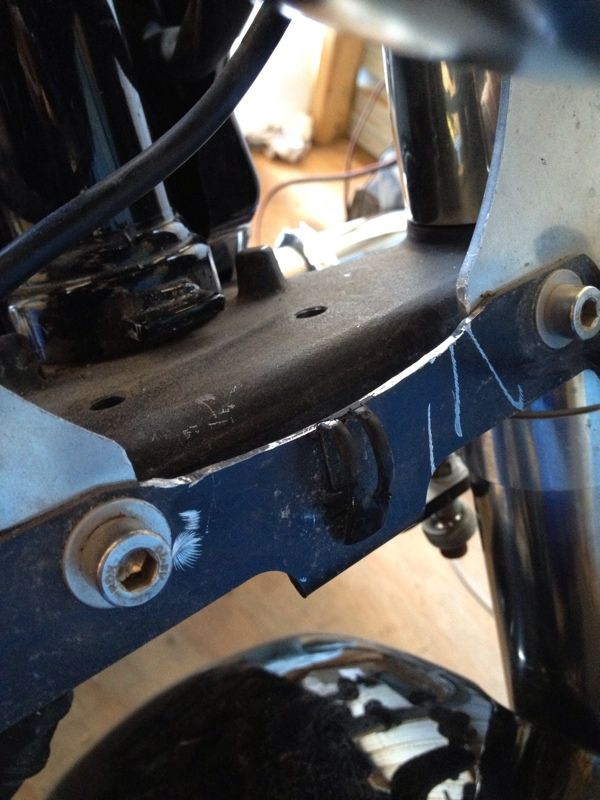

I had to  grind the turn signal light bracket down some to allow for bolt heads. this was before I finished and painted it. I failed to take a picture after I smoothed it out
Moving suzuki C50 headlight forward 1 3/4 inches B37DD08C-E9E7-493D-A7CD-0FE7F4642130-3630-000006B2A0C4C9DC_zpsde70c0b8
install bracket back to tree

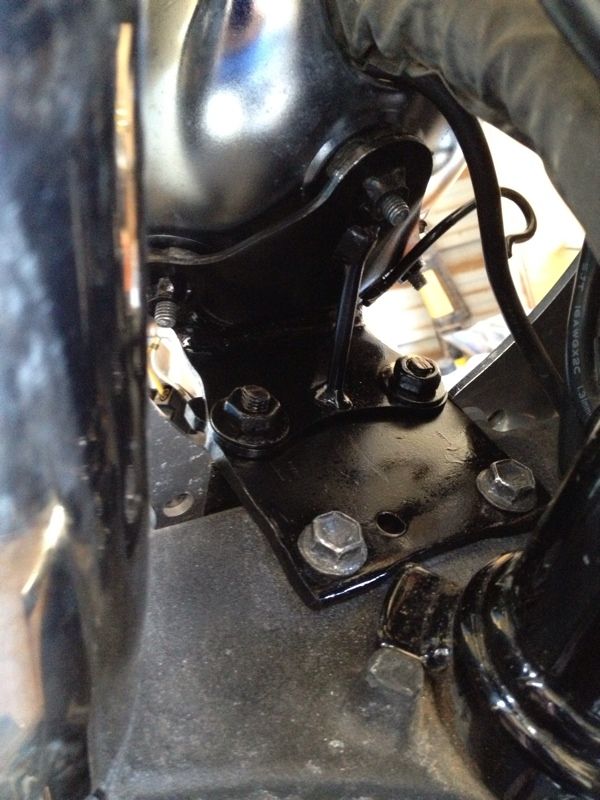

Moving suzuki C50 headlight forward 1 3/4 inches A3CE3A88-E8B5-42F1-AFA7-1CB7E9F6A032-3630-000006B2A8B07081_zps8535bf6c
Install headlight bucket  to bracket
At this point when I went to put the fairing back on it was just close enough I couldn't get the Fairing quick disconnect to go down over the light. the mount has an adjustment up and down. It is as for up as it will go. I will have to do some more redneck engineering to raise it about 1/2 inch before it will fit. I will post the rest when i get that done.
 i hope this is informative to someone.
Back to top Go down
simbo
* Site Guru *
simbo


Moving suzuki C50 headlight forward 1 3/4 inches Empty
PostSubject: Re: Moving suzuki C50 headlight forward 1 3/4 inches   Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeMon Mar 04, 2013 9:13 pm

Good job and write up Tex Moving suzuki C50 headlight forward 1 3/4 inches 2170595768
Back to top Go down
smart
Valued Member
smart


Moving suzuki C50 headlight forward 1 3/4 inches Empty
PostSubject: Re: Moving C50 headlight forward 1 3/4 inches    Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeMon Mar 04, 2013 10:53 pm

Moving suzuki C50 headlight forward 1 3/4 inches 2170595768 Tex well done
Back to top Go down
Mr Intruder
Suzuki800.com Founder ... & ... Senior Administrator
Mr Intruder


Moving suzuki C50 headlight forward 1 3/4 inches Empty
PostSubject: Re: Moving suzuki C50 headlight forward 1 3/4 inches   Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeTue Mar 05, 2013 3:05 am

Nice one Tex, excellent write up. Moving suzuki C50 headlight forward 1 3/4 inches 2170595768
Its write ups like this that really encourage members to go for it themselves and even use the info that they store in the back of their minds for other applications as well. Moving suzuki C50 headlight forward 1 3/4 inches 3498837457

Tex you say you need it 1/2" higher, could you not just put a spacer between the two brackets and use slightly longer bolts?
Back to top Go down
Proudtexson
VIP Member
Proudtexson


Moving suzuki C50 headlight forward 1 3/4 inches Empty
PostSubject: Re: Moving suzuki C50 headlight forward 1 3/4 inches   Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeTue Mar 05, 2013 4:00 am

The Memphis Shades has a quick release mech. The piece that mounts to the fairing is slotted so as to raise the height of the fairing up and down about an inch. It is moved up as far as it will go. It is close originally to slid the fairing down over the light. Moving it out raised the light up just enough that the fairing want slid down behind the light. It will be an easy fix. I will just have to take the fairing mount off and make the slot longer so the fairing will up about 1/2 inch. That also will raise the windshield 1/2 inch. It needs that anyway because the air hits right at the top of my helmet now. That will help put the air over my helmet. I will take pics when I am doing that to make it more understood.
Back to top Go down
alfie92
Very Valued VIP Member
alfie92


Moving suzuki C50 headlight forward 1 3/4 inches Empty
PostSubject: Re: Moving suzuki C50 headlight forward 1 3/4 inches   Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeTue Mar 05, 2013 8:57 am

Good mod and write up Tex,well done.
Back to top Go down
Proudtexson
VIP Member
Proudtexson


Moving suzuki C50 headlight forward 1 3/4 inches Empty
PostSubject: Re: Moving suzuki C50 headlight forward 1 3/4 inches   Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeFri Mar 08, 2013 11:25 pm

Proudtexson wrote:
This the procedure i used to move my C50 Headlight forward to move it out to match Batwing fairing
remove headlight rim and remove the three bolts that hold light bucket. then remove the light bracket from Tree. 2-12mm bolts

Moving suzuki C50 headlight forward 1 3/4 inches E615F862-BDC6-4527-84AA-F52E59768D4B-590-0000013C16B58F8F_zps6e37ea0c
Using the bracket as a pattern for bolt pattern. Redneck engineer a plate that will move light forward. I moved it 1 and 3/4 inches. Be sure to keep the 4 hole square with each other.
Moving suzuki C50 headlight forward 1 3/4 inches DBA6D6F2-5BE7-4D80-AD4D-AAADD8AE76F9-3630-000006B2A6BC64EC_zps72a80364
Moving suzuki C50 headlight forward 1 3/4 inches 173A9984-4AD2-4E50-9250-45EA0D261C14-3630-000006B2A4D1A155_zpsf1a5756f
I had to grind the turn signal light bracket down some to allow for bolt heads. this was before I finished and painted it. I failed to take a picture after I smoothed it out
Moving suzuki C50 headlight forward 1 3/4 inches B37DD08C-E9E7-493D-A7CD-0FE7F4642130-3630-000006B2A0C4C9DC_zpsde70c0b8
install bracket back to tree
Moving suzuki C50 headlight forward 1 3/4 inches A3CE3A88-E8B5-42F1-AFA7-1CB7E9F6A032-3630-000006B2A8B07081_zps8535bf6c
Install headlight bucket to bracket
At this point when I went to put the fairing back on it was just close enough I couldn't get the Fairing quick disconnect to go down over the light. the mount has an adjustment up and down. It is as for up as it will go. I will have to do some more redneck engineering to raise it about 1/2 inch before it will fit. I will post the rest when i get that done.
i hope this is informative to someone.
Moving suzuki C50 headlight forward 1 3/4 inches 88A7B3F8-3524-489F-AE43-61E5A56D0293-6500-00000B5343CD25DC_zpse3c145c4

I had to change the bracket. I used my bench grinder and cut a groove in the Bracket so I could put the headlight bracket on the reverse side.

Moving suzuki C50 headlight forward 1 3/4 inches 1BDACDB2-B1B9-4A09-9190-5A803FDA6278-6500-00000B533D9B26C3_zpsfd00d4a8
note that the Headlight brackey is on the bottom side instaead of on top as before.

Moving suzuki C50 headlight forward 1 3/4 inches 7B711CED-5192-43BC-94A4-8EF432D9C5D0-6500-00000B533673B179_zps73997523
it was still very close to get the the fairing back on. It sticks out a little more than I thought it would.

Moving suzuki C50 headlight forward 1 3/4 inches 7A979F37-7757-4CBA-880E-84125645B479-6500-00000B533303BE74_zpsd3016ee9

Please give some feedback
Back to top Go down
Mr Intruder
Suzuki800.com Founder ... & ... Senior Administrator
Mr Intruder


Moving suzuki C50 headlight forward 1 3/4 inches Empty
PostSubject: Re: Moving suzuki C50 headlight forward 1 3/4 inches   Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeSat Mar 09, 2013 9:41 am

I am sure with the skills you have already displayed on this modification you could get that head light back a little further, if you are unhappy as is.
I must say I think you have done a great job and write up. Moving suzuki C50 headlight forward 1 3/4 inches 3322349030
Back to top Go down
Bunso Steel
Valued Member
Bunso Steel


Moving suzuki C50 headlight forward 1 3/4 inches Empty
PostSubject: Re: Moving suzuki C50 headlight forward 1 3/4 inches   Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeSat Mar 09, 2013 10:45 am

Moving suzuki C50 headlight forward 1 3/4 inches 2170595768 I think the headlight looked a little better when it was a little recessed into the fairing rather than sticking out a bit, but nice work anyway modifying that bracket. Some excellent redneck engineering as you put it! It must be quite tricky to get it perfectly lined up with the fairing
Back to top Go down
Proudtexson
VIP Member
Proudtexson


Moving suzuki C50 headlight forward 1 3/4 inches Empty
PostSubject: Re: Moving suzuki C50 headlight forward 1 3/4 inches   Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeSat Mar 09, 2013 11:59 am

I am not satisfied with it. i don't know why it is sticking out so far. I can't move it back anymore with this design. I moved it forward one and a half inches I can't figure why it is sticking out more than that. Thanks Joe for The honest feed back that was what I was looking for.
Back to top Go down
simbo
* Site Guru *
simbo


Moving suzuki C50 headlight forward 1 3/4 inches Empty
PostSubject: Re: Moving suzuki C50 headlight forward 1 3/4 inches   Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeSat Mar 09, 2013 12:26 pm

I think it would look better with the top of the headlight just sticking out slightly past the fairing,
You could move it back 1/2 an inch by drilling two new holes in the bracket you've made, then cutting the same amount off the back of it, that would make stick out less, to get it further back you'd have to weld the two brackets together because the bolts would hit your lower yoke,
Back to top Go down
Mr Intruder
Suzuki800.com Founder ... & ... Senior Administrator
Mr Intruder


Moving suzuki C50 headlight forward 1 3/4 inches Empty
PostSubject: Re: Moving suzuki C50 headlight forward 1 3/4 inches   Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeSat Mar 09, 2013 12:53 pm

It can only stick out as far as the bracket you have made
Back to top Go down
Proudtexson
VIP Member
Proudtexson


Moving suzuki C50 headlight forward 1 3/4 inches Empty
PostSubject: Re: Moving suzuki C50 headlight forward 1 3/4 inches   Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeSat Mar 09, 2013 1:17 pm

simbo wrote:
I think it would look better with the top of the headlight just sticking out slightly past the fairing,
You could move it back 1/2 an inch by drilling two new holes in the bracket you've made, then cutting the same amount off the back of it, that would make stick out less, to get it further back you'd have to weld the two brackets together because the bolts would hit your lower yoke,

Sim I see what your saying about the 1/2 inch. i would have to put the headlight bracket back on top and weld it to move it any further than that. That would mean it would be irreversible if it didn't work, Might be hard to get another headlight bracket. I still can't figure out why it is out so far. it was recessed about and inch or more. I move it forward 1 3/4 inches and it is out so far. there must be something I didn't Get when I was getting My redneck Engineering Degree from the University of Hard Knocks.
Back to top Go down
simbo
* Site Guru *
simbo


Moving suzuki C50 headlight forward 1 3/4 inches Empty
PostSubject: Re: Moving suzuki C50 headlight forward 1 3/4 inches   Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeSat Mar 09, 2013 1:27 pm

Try the 1/2 inch Tex, then if that's still not far enough back? take a measurement with the bracket attached to the headlight and the other to the yoke, mark it and get them welded together from the markings.
Back to top Go down
Proudtexson
VIP Member
Proudtexson


Moving suzuki C50 headlight forward 1 3/4 inches Empty
PostSubject: Re: Moving suzuki C50 headlight forward 1 3/4 inches   Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeSat Mar 09, 2013 1:51 pm

Thanks guy's for the feedback. You have helped a lot. I am not sure it is worth it. I think I will put it back original. My fairing normally takes about 10 seconds to remove with the quick release on the Memphis Shades. It's hard getting off and on this way. Good idea. just didn't work like I thought it would.
Back to top Go down
Mr Intruder
Suzuki800.com Founder ... & ... Senior Administrator
Mr Intruder


Moving suzuki C50 headlight forward 1 3/4 inches Empty
PostSubject: Re: Moving suzuki C50 headlight forward 1 3/4 inches   Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeSat Mar 09, 2013 1:55 pm

As my old mum used to say "God loves a trier" & so do I. People that have ago, always deserve respect in my book.
Having a go is half the fun, sometimes it works & sometimes it don't. Moving suzuki C50 headlight forward 1 3/4 inches 15281
Back to top Go down
simbo
* Site Guru *
simbo


Moving suzuki C50 headlight forward 1 3/4 inches Empty
PostSubject: Re: Moving suzuki C50 headlight forward 1 3/4 inches   Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeSat Mar 09, 2013 1:57 pm

I've just been looking at the mounting points for your headlight, Would it not be easier to do away with the bracket you made, and just fit longer bolts through the headlight with washers/spacers to move the headlight forward ?
you could do this with the fairing in place possibly.
Back to top Go down
Proudtexson
VIP Member
Proudtexson


Moving suzuki C50 headlight forward 1 3/4 inches Empty
PostSubject: Re: Moving suzuki C50 headlight forward 1 3/4 inches   Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeSat Mar 09, 2013 2:19 pm

simbo wrote:
I've just been looking at the mounting points for your headlight, Would it not be easier to do away with the bracket you made, and just fit longer bolts through the headlight with washers/spacers to move the headlight forward ?
you could do this with the fairing in place possibly.
Sims your a genius. I give you an Honorary Redneck Engineering Degree From Redneck University of Hard Knocks.
Back to top Go down
Proudtexson
VIP Member
Proudtexson


Moving suzuki C50 headlight forward 1 3/4 inches Empty
PostSubject: Re: Moving suzuki C50 headlight forward 1 3/4 inches   Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeFri Mar 15, 2013 8:06 pm

Sim I haven't had a chance to try your idea of using spacers on the headlight. I think that will work. I have been down all week. almost had Pneumonia. haven't done much but hang around This site. Feeling better just can't breath very good. thanks to $109.00 worth of meds. damn what could I have bought for my bike with that money.
Back to top Go down
simbo
* Site Guru *
simbo


Moving suzuki C50 headlight forward 1 3/4 inches Empty
PostSubject: Re: Moving suzuki C50 headlight forward 1 3/4 inches   Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeFri Mar 15, 2013 8:13 pm

Get well soon Tex :ill: Nothing worse than being ill and not able to ride :aghh:
Back to top Go down
Sponsored content




Moving suzuki C50 headlight forward 1 3/4 inches Empty
PostSubject: Re: Moving suzuki C50 headlight forward 1 3/4 inches   Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitime

Back to top Go down

Moving suzuki C50 headlight forward 1 3/4 inches
Back to top
Page 1 of 1
 Similar topics
-
» Moving Forward...
» Sherone Simpson moving from MVP to Racers?
» Clocks going Forward!!
» Pavel Datsyuk: Best Forward in the NHL?
» Will the real Coot please move forward...

Permissions in this forum:You cannot reply to topics in this forum
Suzuki 800 Intruder Club & Forum :: The Garage :: General Aftermarkets & Modifications-
Jump to:
Slide Show
A random selection of suzuki800.com member bikes.
Latest topics
» Belt conversion Yay or nay?
Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeby Truckerjer Yesterday at 6:59 pm

» Honey I'm Home!
Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeby johnboss Yesterday at 6:21 pm

» Top Yoke Covers
Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeby Badger Thu Sep 23, 2021 12:04 pm

» vs 1400 final drive in a vs 800
Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeby admin Tue Sep 21, 2021 7:36 pm

» New to bike world
Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeby Truckerjer Tue Sep 21, 2021 1:36 pm

» Cable extentions or rerouting for raised bars?
Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeby hmac Sat Sep 18, 2021 2:41 pm

» Adding a electronic
Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeby Truckerjer Fri Sep 17, 2021 10:41 pm

» Hola from Spain!
Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeby Badger Tue Sep 14, 2021 3:58 pm

» Hello from the USA
Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeby wildcatvs800 Mon Sep 13, 2021 9:02 pm

» VX800 Forks failing after just a few days of simple use?
Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeby Damion Jones Sun Sep 12, 2021 10:25 pm

» Hi there. 2012 Intruder M50
Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeby jp.hindle@btinternet.com Thu Sep 09, 2021 6:37 pm

» 2008 Suzuki C800T genuine saddlebags
Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeby Johnmc800 Thu Sep 09, 2021 5:53 pm

» List of mods - Bike is finally complete - Marauder VZ800
Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeby botskabouter Fri Sep 03, 2021 11:40 am

» hello all,
Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeby Petrolhead750 Thu Sep 02, 2021 7:51 pm

» Oil leak from 1994 VS800 Intruder - right side, but only while running
Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeby MikeKKim Wed Sep 01, 2021 12:23 am

» New member saying hello
Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeby Johnmc800 Tue Aug 31, 2021 3:39 pm

» E10 fuel in a 1990 VX800 - What can happen?
Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeby Damion Jones Tue Aug 31, 2021 3:33 pm

» Rebaffle?
Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeby Uneasy_Rider Sat Aug 28, 2021 3:14 pm

» Hello ... from the other side?
Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeby Badger Fri Aug 27, 2021 12:47 pm

» VZ800 Starter Control Relay
Moving suzuki C50 headlight forward 1 3/4 inches Icon_minitimeby monkeyfarm Tue Aug 24, 2021 2:29 pm

Log in
Username:
Password:
Log in automatically:
:: I forgot my password
