 Complete side mount reg prep & install - 2009 Suzuki C800 / C50

Go down
+8
Proudtexson
Mr Intruder
bigmal
fat intruder
captain crash
alfie92
twenty2
simbo
12 posters
AuthorMessage
simbo
* Site Guru *
simbo


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeThu Apr 18, 2013 9:39 pm

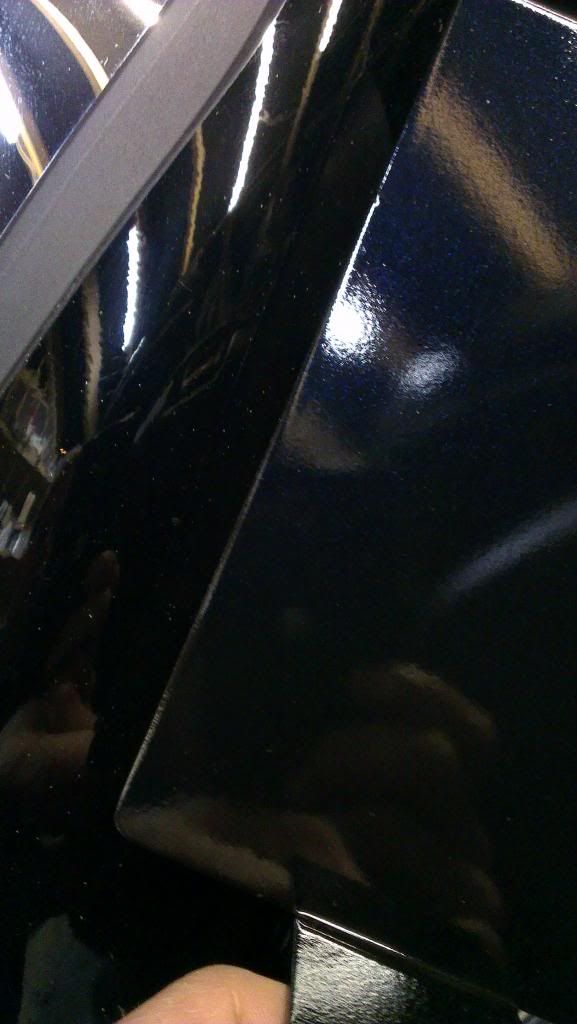

I started preparing the side mount reg plate holder for when I remove the indicator/reg thing and fill and respray the rear fender, First of all I got some black spray to match the bike so I could try it and make sure it was ok before painting the fender, 1 coat primer, 1 coat black and 2 coats of lacquer was enough just to try it. not the best spray job in the world but good enough for the back of the mount.

Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Reg4_zps048fda54

Next I drilled four holes in the mount, 2 for the led lights and 2 to feed the wires back behind the plate so they're out of sight, then fitted 3 washers between the plate and mount to give clearance for the wiring which comes out at the side and will be hidden along the false swing arm.

4 holes
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Reg5_zps7c5d7dcd

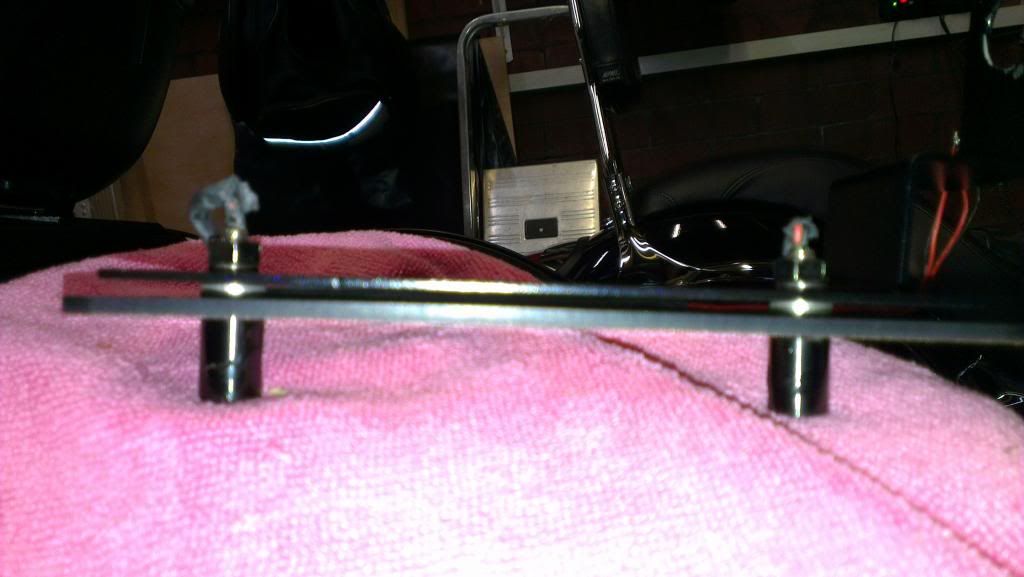

washers between plate and mount
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Reg6_zpsf915252e

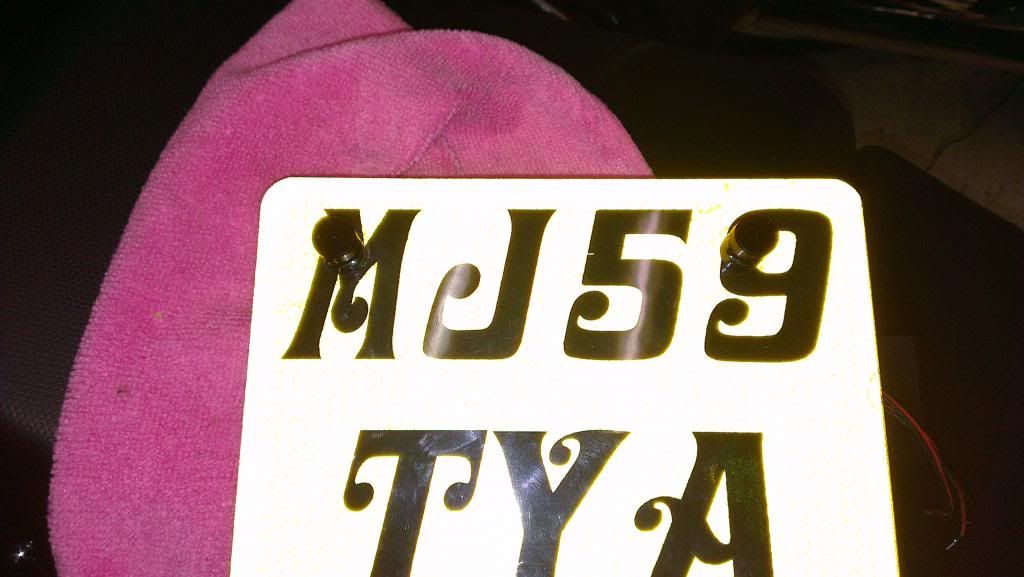

This is the plate with the led lights, I know they're to low but I used the existing reg and the holes were already there, any prob's next mot time and I'll get a couple of chrome ones and a new reg.
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Reg1_zps0dc5907b

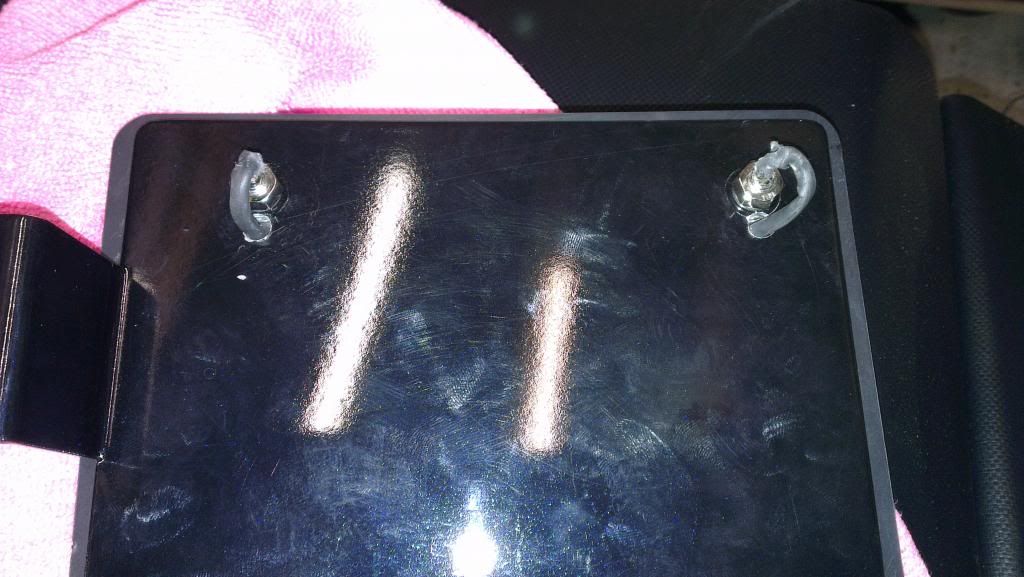

On the back where the wires and nuts for the light came through, I stuck 2 chromed spiked nut covers over them (I've used smaller ones than in the photo)
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Reg3_zps85506459

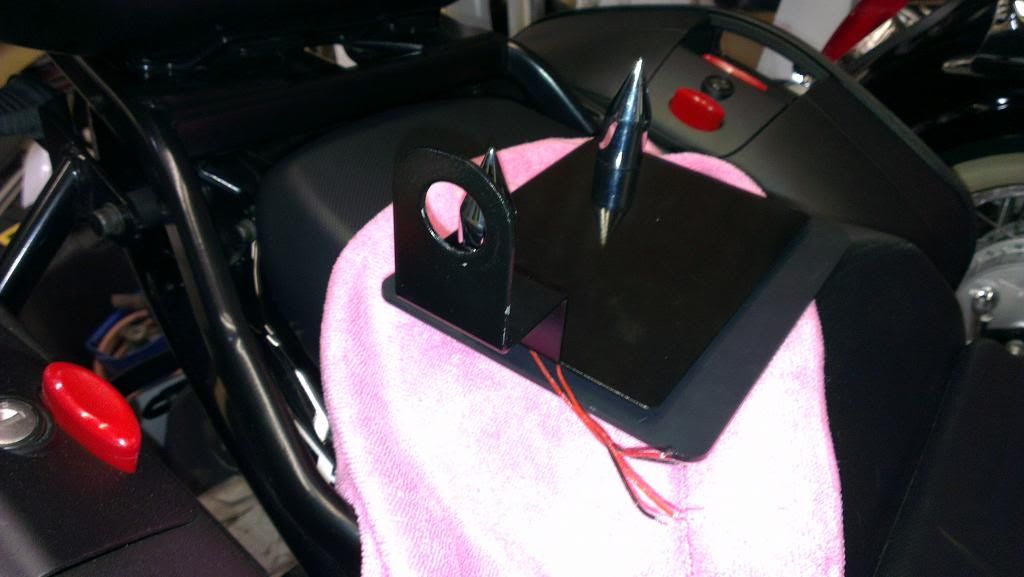

Next job will be to extend the wires and cover them with black heat shrink so they can be hidden more easily.





*************************************************************************

For extending the wiring I used a really old charger so it was quite long too, not like these modern 18 inch ones, I put the mount on tonight and removed the chrome thing, So now I'm at the point of no return! Gulp!!!

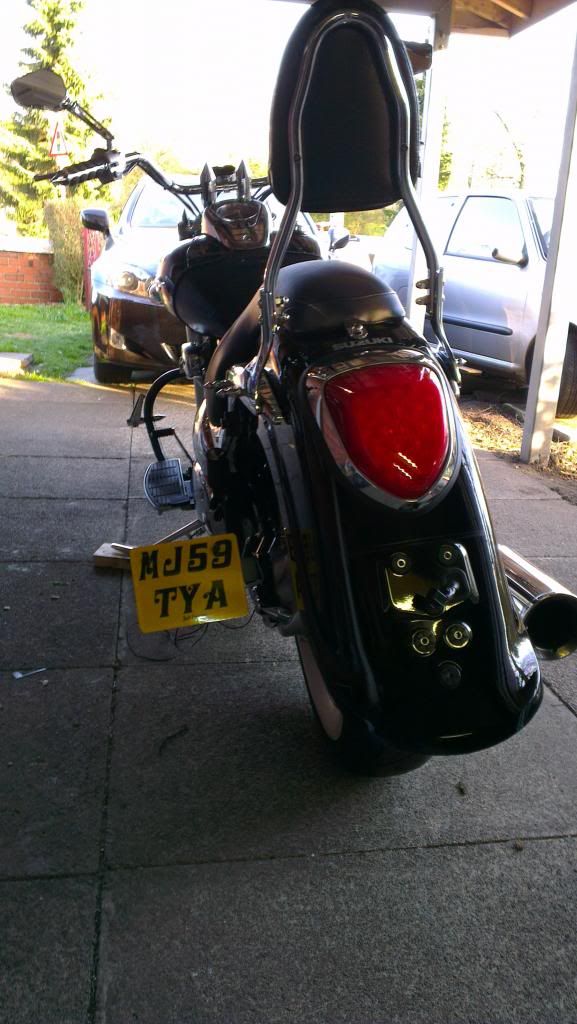

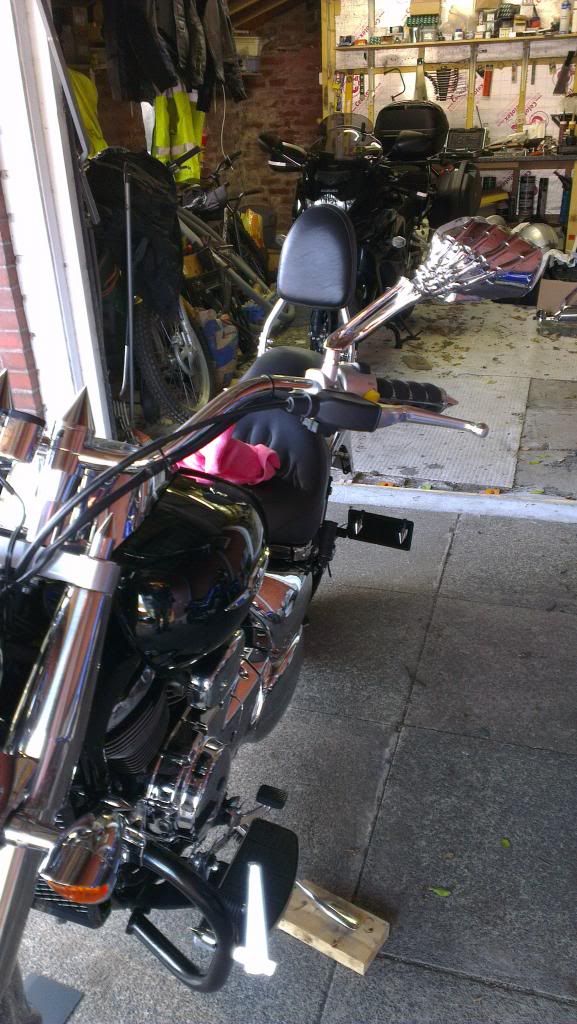

Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Side3_zpsa78e62e4

Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Side2_zps412520b3

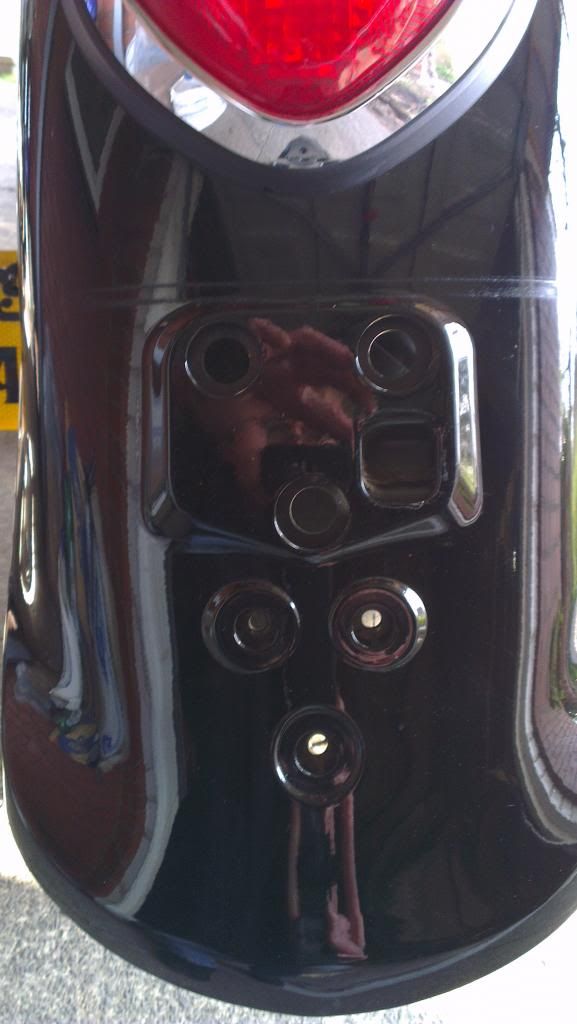

Next step is to cut 3 holes in the fender to remove the raised bits before filling and painting pale






*************************************************************************
The point of no return has been and gone now Complete side mount reg prep & install - 2009 Suzuki C800 / C50 852880

After my morning ride of going here there and everywhere I ended up at Squires in Yorkshire and met Smart and Zen, Mick had just left, Anyway, back to the point of no return, when I got back I thought I'd take the plunge and remove the 3 raised points on the fender,
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 IMAG0387_zps01b38e3b

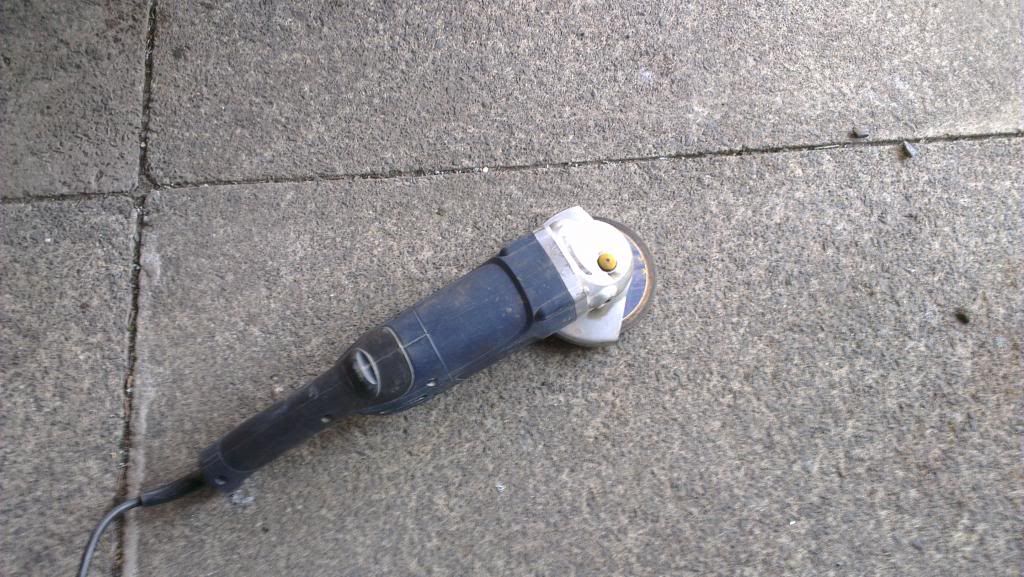

So out with the trusty Dremel (ok, industrial Dremel) to remove the lumps,
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 IMAG0388_zpse70c1f85

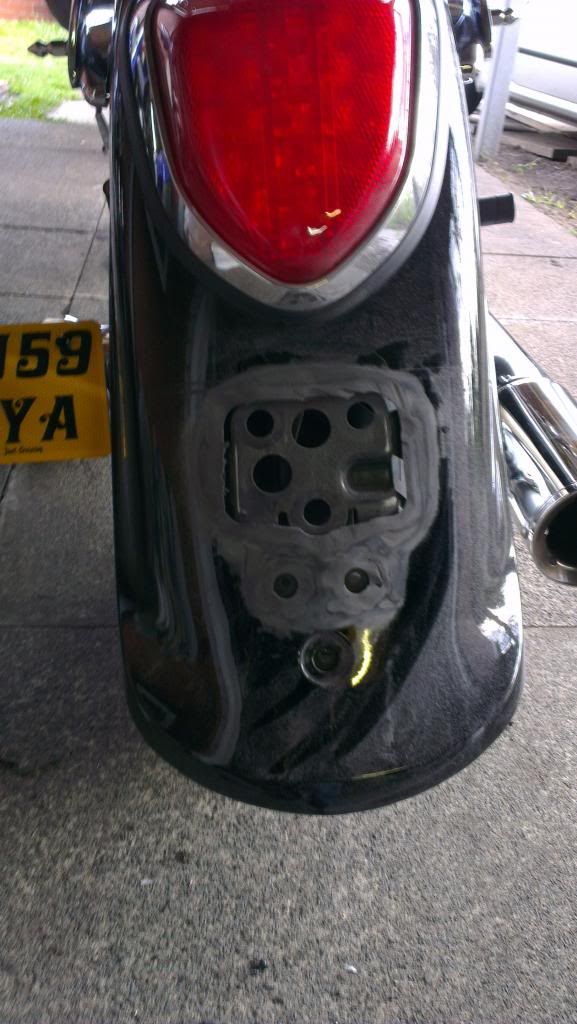

Lumps fully removed leaving subframe of fender on show, ready for filling with fiberglass and plugging the holes I'd just created,

Complete side mount reg prep & install - 2009 Suzuki C800 / C50 IMAG0389_zps3ed49b46

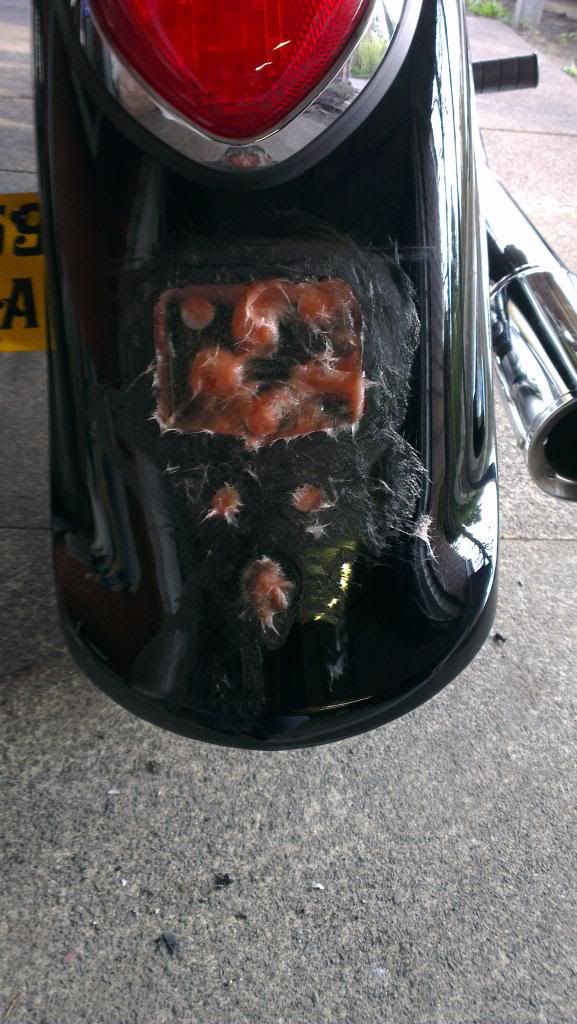

I packed the fiberglass inside to make sure the fender grips the subframe and is held in place solidly,
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 IMAG0390_zps48ffb659

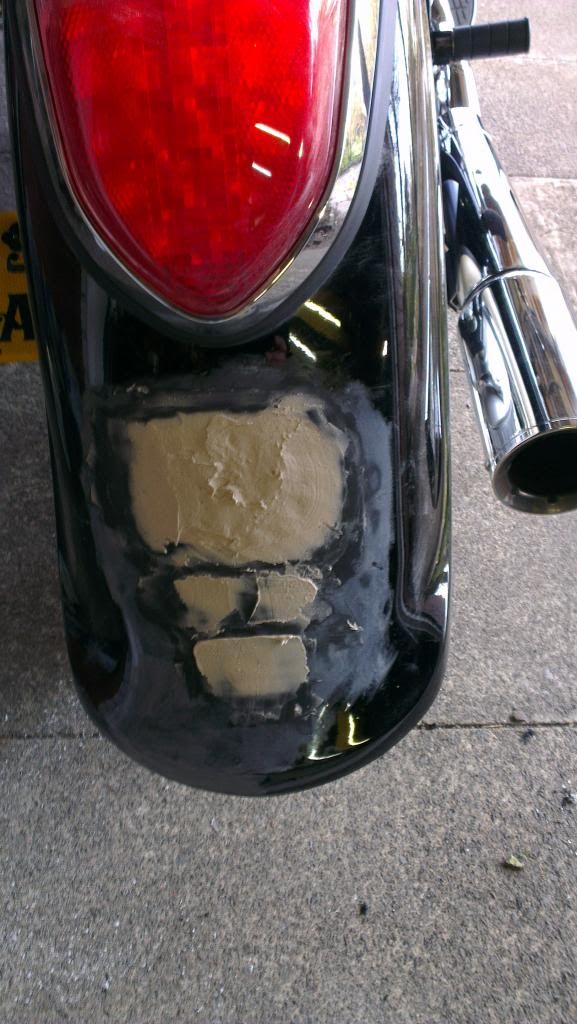

I then sanded the fibreglass down where it was proud and give it a couple of coats of body filler,
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 IMAG0391_zps6d6bced4

Hopefully tomorrow? I'll sand it smooth and get a layer of fine surface filler on before priming it up to see if anymore filling is required?.

No going back now! Complete side mount reg prep & install - 2009 Suzuki C800 / C50 852880


*************************************************************************

This morning didn't go as planned lol I got my palm sander out and started sanding away and the bloody thing blew up! sparks everywhere!
(note to self? need new palm sander) Back to basics it is then Complete side mount reg prep & install - 2009 Suzuki C800 / C50 17537562 I sanded the filler back to smooth by hand (note pin hole top left and bottom right)
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 IMAG0393_zps2ba26ccf

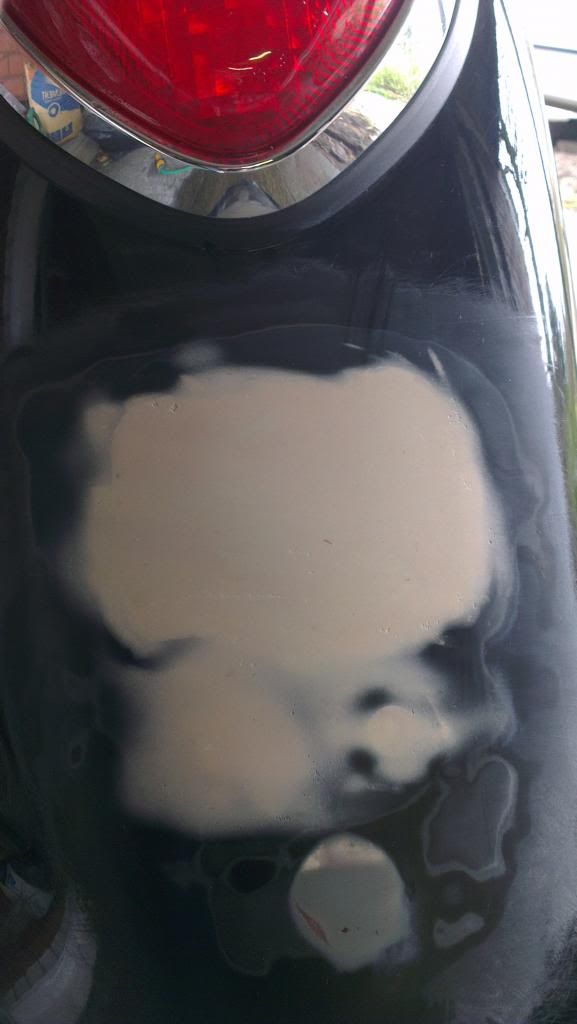

Next I gave it a coat of fine surface filler hoping to fill in any pin holes

Complete side mount reg prep & install - 2009 Suzuki C800 / C50 IMAG0397_zpsd9948694

Then after rubbing down with various grades of wet and dry sandpaper, I gave it a quick coat of high build primer.

Complete side mount reg prep & install - 2009 Suzuki C800 / C50 IMAG0399_zps3248bc25

I'm about 70% happy with it at the moment, The feel of it's good, but there's still a pin hole top left, I've filled it in now so hopefully the weather will be favourable this week and I'll get it finished off?



*************************************************************************

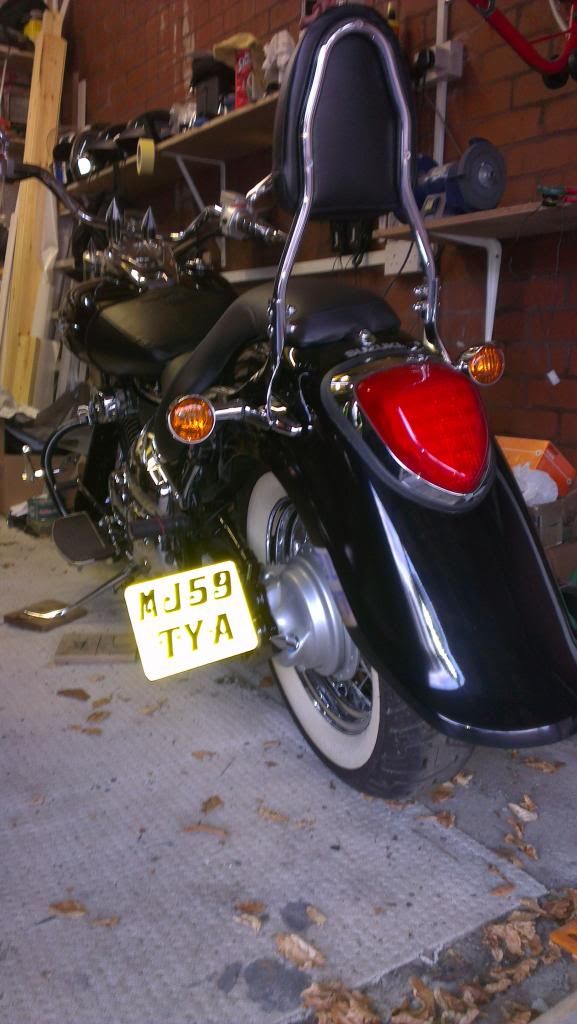

I've nearly finished now Very Happy I've just got the wiring to finish tomorrow, then it's back to ridable phew!!!

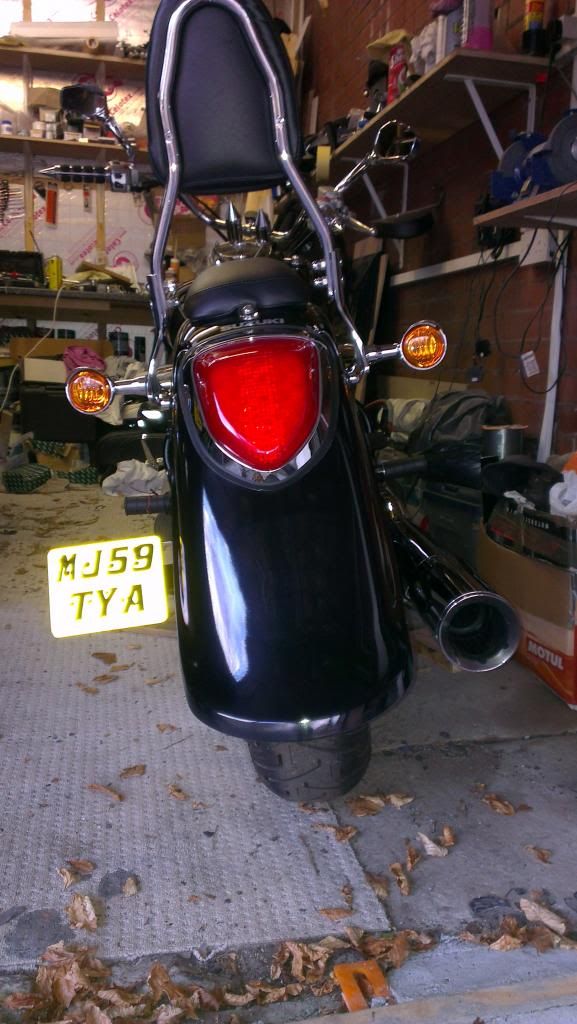

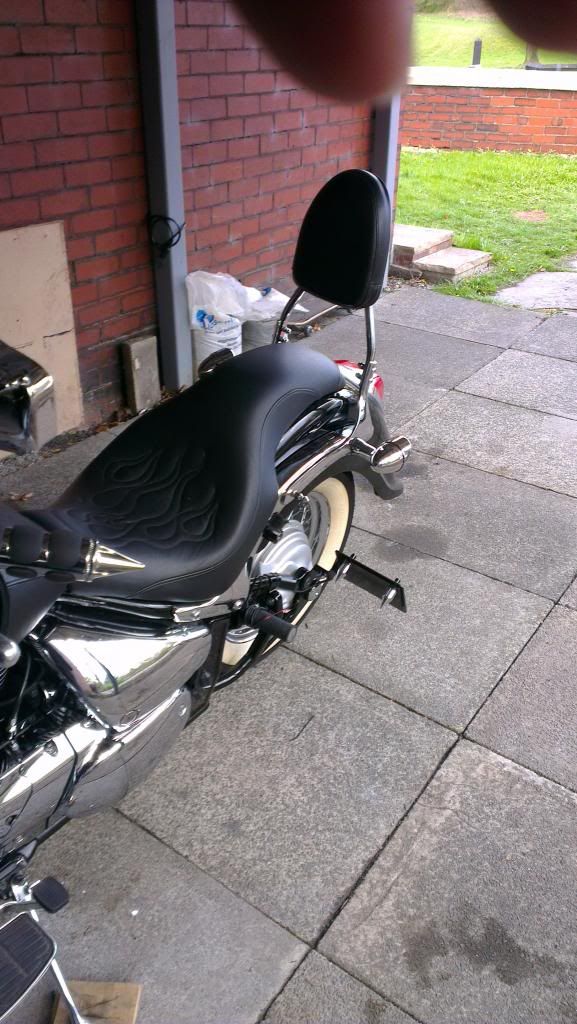

Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Newarse7_zpsd172b9b6
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Newarse6_zps6ded5596
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Newarse4_zps625473cb


*************************************************************************

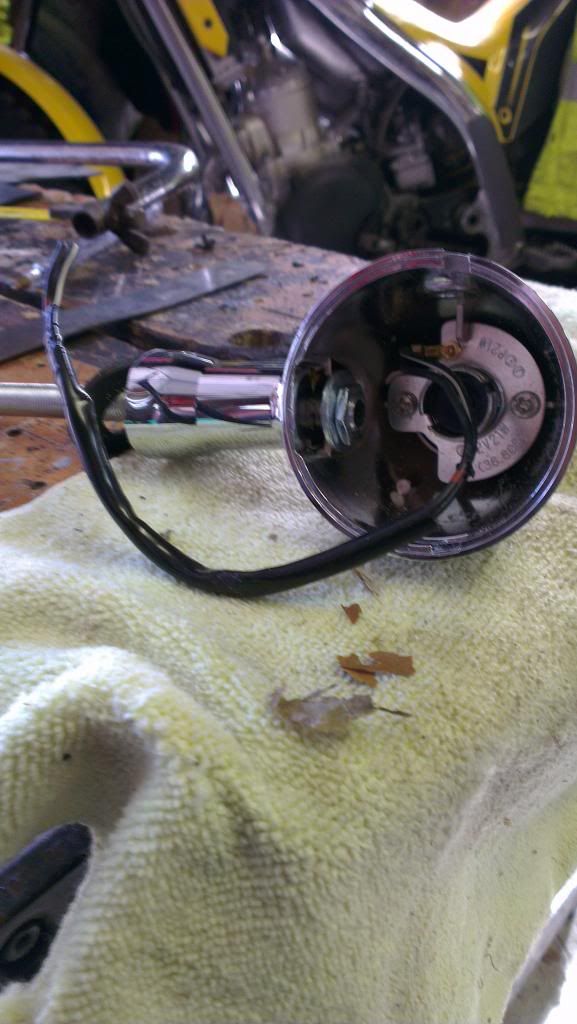

I wanted to use the standard indicators fitted to the rear fender bolt in this mod, but when I removed them, they have a rubber bung inside with no way of fitting them to anything other than the standard chrome thing they were on, So that's where the fun began :what1: I removed the rubber inner bung and got some m10 nipple tube Complete side mount reg prep & install - 2009 Suzuki C800 / C50 852880 and fitted it through the inside of the indicator.
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Idicator1_zpsc9e74eb4

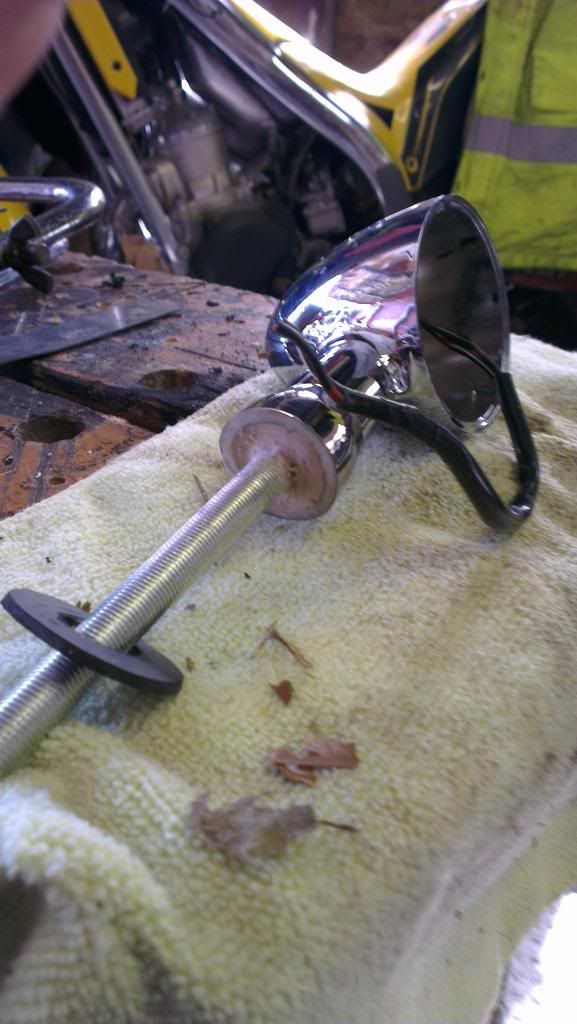

Then I packed body filler around the tube inside the stem to hold it central and made a rubber washer to fit between the rail and stem, So I can mount the standard indicator anywhere now by drilling a 10mm hole.

Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Idicator2_zps42789a20


*************************************************************************


This write-up has been consolidated from copied posts that Sim made throughout this entire thread
ADMIN
Back to top Go down
twenty2
Member
twenty2


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeThu Apr 18, 2013 9:44 pm

Looks really nice.
Was thinking about uploading some pics of my side mount. But i think your guide is more than enough. Complete side mount reg prep & install - 2009 Suzuki C800 / C50 2645662097
Back to top Go down
simbo
* Site Guru *
simbo


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeThu Apr 18, 2013 10:13 pm

twenty2 wrote:
Looks really nice.
Was thinking about uploading some pics of my side mount. But i think your guide is more than enough. Complete side mount reg prep & install - 2009 Suzuki C800 / C50 2645662097

Some pics would be nice if you could Complete side mount reg prep & install - 2009 Suzuki C800 / C50 3498837457 , It gives me idea's Complete side mount reg prep & install - 2009 Suzuki C800 / C50 3993731222
Back to top Go down
alfie92
Very Valued VIP Member
alfie92


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeThu Apr 18, 2013 10:24 pm

Looking good Sim,always nice to see pics.
Back to top Go down
captain crash
Mentally Deficient lunatic ..... & ..... Site Moderator
captain crash


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeThu Apr 18, 2013 11:07 pm

Excellent. very well thought out Simbo. Complete side mount reg prep & install - 2009 Suzuki C800 / C50 276246
Back to top Go down
twenty2
Member
twenty2


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeFri Apr 19, 2013 7:17 am

Hope this can give you some ideas Simbo, and ofcourse everyone elese.
This is how i solved my side mount.

1, Cut the pices that needed, one arm and one for the backside of the plate.
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Img_0011

2. Messure where the arm should be positioned. I wanted mine to be slimmed so i let it "slip" over the swing arm for a bit. I allso made some angles in the bottom of the plateholder and at the bottom of the arm to make it stronger against bending forces.
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Img_0012

3. Picture of assembled plateholder with holes drilled for the platem and allso for 2 diodlights.
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Img_0013

4, Used the bottom bracket for the rearfender as mounting point.
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Img_0014

5. Picture form the rear with mounted plate.
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Img_0015
Back to top Go down
captain crash
Mentally Deficient lunatic ..... & ..... Site Moderator
captain crash


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeFri Apr 19, 2013 7:20 am

Good job twenty2, very close fitting & tidy Complete side mount reg prep & install - 2009 Suzuki C800 / C50 184121345
Back to top Go down
fat intruder
Very Valued VIP Member
fat intruder


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeFri Apr 19, 2013 9:33 am

both great bits of work cant wait to see the finished product sim
Back to top Go down
simbo
* Site Guru *
simbo


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeFri Apr 19, 2013 5:57 pm

I'm just in the process of lengthening the wires for the led plate light, I'm right in thinking an old phone charger cable will be enough for two leds? Complete side mount reg prep & install - 2009 Suzuki C800 / C50 1090754380
Back to top Go down
captain crash
Mentally Deficient lunatic ..... & ..... Site Moderator
captain crash


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeFri Apr 19, 2013 6:42 pm

Dave and Alfie were talking about that in another thread but I can't remember which one. Dave uses speaker wire and Alfie uses tellephone wire for LEDs, so yes that will be fine Complete side mount reg prep & install - 2009 Suzuki C800 / C50 184121345
Back to top Go down
simbo
* Site Guru *
simbo


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeFri Apr 19, 2013 7:31 pm

Cheers Crash Complete side mount reg prep & install - 2009 Suzuki C800 / C50 3498837457
Back to top Go down
bigmal
Very Valued VIP Member
bigmal


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeFri Apr 19, 2013 7:42 pm

simbo wrote:
I'm just in the process of lengthening the wires for the led plate light, I'm right in thinking an old phone charger cable will be enough for two leds? Complete side mount reg prep & install - 2009 Suzuki C800 / C50 1090754380

That's exactly what I used for the red LEDs in my panniers. The beauty of it is, you've got 2 insulated wires, then an outer insulation too, so it's well protected. There was a rating inkjeted onto the cable I canibalised, so I rang the LED supplier who recognised immediatelly what it was and said it was OK.

cheers
Back to top Go down
simbo
* Site Guru *
simbo


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeFri Apr 19, 2013 9:19 pm

bigmal wrote:
That's exactly what I used for the red LEDs in my panniers. The beauty of it is, you've got 2 insulated wires, then an outer insulation too, so it's well protected. There was a rating inkjeted onto the cable I canibalised, so I rang the LED supplier who recognised immediatelly what it was and said it was OK.

Done it now Mal cheers Complete side mount reg prep & install - 2009 Suzuki C800 / C50 3498837457 It was a really old charger so it was quite long too, not like these modern 18 inch ones, I put the mount on tonight and removed the chrome thing, So now I'm at the point of no return! Gulp!!!Next step is to cut 3 holes in the fender to remove the raised bits before filling and painting pale
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Side3_zpsa78e62e4
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Side2_zps412520b3

Complete side mount reg prep & install - 2009 Suzuki C800 / C50 3660331482
Back to top Go down
fat intruder
Very Valued VIP Member
fat intruder


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeFri Apr 19, 2013 10:10 pm

take it your foot boards tuch the floor before your numberplate just jokeing lol lookin goood
Back to top Go down
bigmal
Very Valued VIP Member
bigmal


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeFri Apr 19, 2013 10:13 pm

Looking great so far Wink
Back to top Go down
captain crash
Mentally Deficient lunatic ..... & ..... Site Moderator
captain crash


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSat Apr 20, 2013 12:43 pm

Love it, great jog Simbo cant wait to see it all finished
Back to top Go down
simbo
* Site Guru *
simbo


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSat Apr 20, 2013 10:03 pm

The point of no return has been and gone now Complete side mount reg prep & install - 2009 Suzuki C800 / C50 852880 After my morning ride of going here there and everywhere I ended up at Squires in Yorkshire and met Smart and Zen, Mick had just left, Anyway, back to the point of no return, when I got back I thought I'd take the plunge and remove the 3 raised points on the fender,
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 IMAG0387_zps01b38e3b
So out with the trusty Dremel (ok, industrial Dremel) to remove the lumps,
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 IMAG0388_zpse70c1f85
Lumps fully removed leaving subframe of fender on show, ready for filling with fiberglass and plugging the holes I'd just created,

Complete side mount reg prep & install - 2009 Suzuki C800 / C50 IMAG0389_zps3ed49b46
I packed the fiberglass inside to make sure the fender grips the subframe and is held in place solidly,
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 IMAG0390_zps48ffb659

I then sanded the fiberglass down where it was proud and give it a couple of coats of body filler,
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 IMAG0391_zps6d6bced4
Hopefully tomorrow? I'll sand it smooth and get a layer of fine surface filler on before priming it up to see if anymore filling is required?.

No going back now! Complete side mount reg prep & install - 2009 Suzuki C800 / C50 852880
Back to top Go down
captain crash
Mentally Deficient lunatic ..... & ..... Site Moderator
captain crash


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSat Apr 20, 2013 10:07 pm

Thats some scary shit your upto there Simbo, looking proper, cant wait til tomorrow to see the next installment Complete side mount reg prep & install - 2009 Suzuki C800 / C50 184121345 Bit suprised your doing all this and going to spray it with the fender still on the bike but I am a kack handed twat and your not
Back to top Go down
bigmal
Very Valued VIP Member
bigmal


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSat Apr 20, 2013 10:25 pm

Wow, some serious stuff there SIM! Have you done much bodywork before? It would be sanding the whole thing to the right profile I'd find scary. Cant wait to see the end result...
Back to top Go down
simbo
* Site Guru *
simbo


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSat Apr 20, 2013 11:10 pm

Crash, Keeping the fender on is the best place to do the work for me, Plus I needed to refix it to the subframe with the fiberglass, I cover the rest of the bike up whilst working on it and when I get to spraying part, I'll make sure everything is protected before hand Complete side mount reg prep & install - 2009 Suzuki C800 / C50 3498837457 .

Mal, Err? bodywork Nah, but I've filled everything you can think of with various fillers before to good effect, So a bit of plastic doesn't really phase me lol Busy day tomoz (trip to Bangor again Complete side mount reg prep & install - 2009 Suzuki C800 / C50 852880) I've only got the morning to work on the bike, so hopefully all goes well, as I'm liking the rear fender more and more with nothing on it!, I did look at removing the rear light? but that is one seriously big hole!!
Back to top Go down
fat intruder
Very Valued VIP Member
fat intruder


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSun Apr 21, 2013 8:16 am

proper job that (say it with a cornish accent) will look good when done mate and your bike is that much more your own
Back to top Go down
Mr Intruder
Suzuki800.com Founder ... & ... Senior Administrator
Mr Intruder


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSun Apr 21, 2013 6:40 pm

Looking really good Sim. Complete side mount reg prep & install - 2009 Suzuki C800 / C50 3498837457
Back to top Go down
alfie92
Very Valued VIP Member
alfie92


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSun Apr 21, 2013 7:57 pm

Sound job that Sim,will look great when finished.
Back to top Go down
simbo
* Site Guru *
simbo


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSun Apr 21, 2013 10:11 pm

This morning didn't go as planned lol I got my palm sander out and started sanding away and the bloody thing blew up! sparks everywhere! (note to self? need new palm sander) Back to basics it is then :aghh: I sanded the filler back to smooth by hand (note pin hole top left and bottom right)
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 IMAG0393_zps2ba26ccf
Next I gave it a coat of fine surface filler hoping to fill in any pin holes
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 IMAG0397_zpsd9948694
Then after rubbing down with various grades of wet and dry sandpaper, I gave it a quick coat of high build primer.
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 IMAG0399_zps3248bc25
I'm about 70% happy with it at the moment, The feel of it's good, but there's still a pin hole top left, I've filled it in now so hopefully? the weather will be favourable this week and I'll get it finished off.
Back to top Go down
Mr Intruder
Suzuki800.com Founder ... & ... Senior Administrator
Mr Intruder


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSun Apr 21, 2013 10:19 pm

Looking like you are so close, can't wait to see it all done Sim.
Back to top Go down
Proudtexson
VIP Member
Proudtexson


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSun Apr 21, 2013 10:43 pm

Looking great. Wish I had that talent. Great job Sim Complete side mount reg prep & install - 2009 Suzuki C800 / C50 184121345
Back to top Go down
fat intruder
Very Valued VIP Member
fat intruder


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeMon Apr 22, 2013 8:37 am

looks good
Back to top Go down
simbo
* Site Guru *
simbo


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSat Apr 27, 2013 8:02 pm

I've nearly finished now Very Happy I've just got the wiring to finish tomorrow, then it's back to ridable phew!!!

Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Newarse7_zpsd172b9b6
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Newarse6_zps6ded5596
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Newarse4_zps625473cb
Back to top Go down
fat intruder
Very Valued VIP Member
fat intruder


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSat Apr 27, 2013 8:12 pm

fookin good that sim nice job pal
Back to top Go down
Proudtexson
VIP Member
Proudtexson


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSat Apr 27, 2013 8:18 pm

Great Great job Sim. Very Pro Job Complete side mount reg prep & install - 2009 Suzuki C800 / C50 1237024881
Back to top Go down
Mr Intruder
Suzuki800.com Founder ... & ... Senior Administrator
Mr Intruder


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSat Apr 27, 2013 8:21 pm

That looks brilliant Sim, first class job. You must be well pleased. Complete side mount reg prep & install - 2009 Suzuki C800 / C50 2645662097 Complete side mount reg prep & install - 2009 Suzuki C800 / C50 276246
How did you feather in the clear top coat, or will you just wait a week or two and use a cutting compound?
Back to top Go down
simbo
* Site Guru *
simbo


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSat Apr 27, 2013 8:37 pm

Cheers guys Complete side mount reg prep & install - 2009 Suzuki C800 / C50 433968 Dave, I feathered it in just below the chrome fender rail, It needs a bit more work but I'll leave it for now,and just do bits over the summer.
Back to top Go down
Mr Intruder
Suzuki800.com Founder ... & ... Senior Administrator
Mr Intruder


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSat Apr 27, 2013 8:48 pm

That just looks so fekin good, so smooooooooooth. Complete side mount reg prep & install - 2009 Suzuki C800 / C50 3498837457
Back to top Go down
simbo
* Site Guru *
simbo


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSat Apr 27, 2013 8:56 pm

I wanted to use the standard indicators fitted to the rear fender bolt in this mod, but when I removed them, they have a rubber bung inside with no way of fitting them to anything other than the standard chrome thing they were on, So that's where the fun began :what1: I removed the rubber inner bung and got some m10 nipple tube Complete side mount reg prep & install - 2009 Suzuki C800 / C50 852880 and fitted it through the inside of the indicator.
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Idicator1_zpsc9e74eb4
Then I packed body filler around the tube inside the stem to hold it central and made a rubber washer to fit between the rail and stem, So I can mount the standard indicator anywhere now by drilling a 10mm hole.

Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Idicator2_zps42789a20
Back to top Go down
pledge
Valued Member
pledge


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSun Apr 28, 2013 10:19 am

Hi, Sim, I have to say I feared you had ruined you rear fender after you had taken the sander to it, but the job you have done is incredible it looks great, you must be delighted with the outcome, fantastic job well done mate.
Back to top Go down
captain crash
Mentally Deficient lunatic ..... & ..... Site Moderator
captain crash


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSun Apr 28, 2013 10:59 am

The rear is looking brilliant Simbo Complete side mount reg prep & install - 2009 Suzuki C800 / C50 276246
Good idea with the way you are making the indicators fit Complete side mount reg prep & install - 2009 Suzuki C800 / C50 184121345
Back to top Go down
bikerdave
Member
bikerdave


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSun Apr 28, 2013 2:38 pm

Looks good Simbo. After seeing your pictures I need to chase mine up as it has been 2 weeks since I sent it off to be powder coated.
Back to top Go down
alfie92
Very Valued VIP Member
alfie92


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSun Apr 28, 2013 6:42 pm

Good job Sim,looks great m8.
Back to top Go down
smart
Valued Member
smart


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Side mount reg prep.    Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSun Apr 28, 2013 8:09 pm

Looks great good job SimComplete side mount reg prep & install - 2009 Suzuki C800 / C50 3498837457
Back to top Go down
bikerdave
Member
bikerdave


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSun May 05, 2013 10:34 am

Got my bracket back from being powder coated. Copied the design from the one on Ebay but made it to my measurements for a good fit. LED number plate lights ready to go on. Just need to decide if i put a 8x6 or 7x5 plate on.
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Photo1_zps4b0b2d4c
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Photo_zpsae042475
Back to top Go down
JJW
Member
JJW


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeSun May 05, 2013 1:00 pm

There are a lot of crafty people here.
Doing pro work, thanks for the pictures.
Back to top Go down
simbo
* Site Guru *
simbo


Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeMon May 06, 2013 11:20 pm

bikerdave wrote:
Got my bracket back from being powder coated. Copied the design from the one on Ebay but made it to my measurements for a good fit. LED number plate lights ready to go on. Just need to decide if i put a 8x6 or 7x5 plate on.

Looking good Dave Complete side mount reg prep & install - 2009 Suzuki C800 / C50 2170595768 I've got a 7x5.5 on mine with a fancy font if that's any use, I've not been pulled for it yet, but that's down to the local dibble in different area's.
Back to top Go down
Sponsored content




Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Empty
PostSubject: Re: Complete side mount reg prep & install - 2009 Suzuki C800 / C50   Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitime

Back to top Go down

Complete side mount reg prep & install - 2009 Suzuki C800 / C50
Back to top
Page 1 of 1
 Similar topics
-
» 2009 Suzuki King Quad 750 with Power Steering...
» Review: 2009 Suzuki King Quad 500 with Power Steering
» 2010 Teryx is here.
» NGK Spark Plug Finder...
» A-ARM BUSHINGs

Permissions in this forum:You cannot reply to topics in this forum
Suzuki 800 Intruder Club & Forum :: The Garage :: General Aftermarkets & Modifications-
Jump to:
Slide Show
A random selection of suzuki800.com member bikes.
Latest topics
» Cable extentions or rerouting for raised bars?
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeby hmac Today at 2:41 pm

» Adding a electronic
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeby Truckerjer Yesterday at 10:41 pm

» New to bike world
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeby Truckerjer Yesterday at 10:27 pm

» Top Yoke Covers
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeby Johnmc800 Wed Sep 15, 2021 9:18 pm

» Hola from Spain!
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeby Badger Tue Sep 14, 2021 3:58 pm

» vs 1400 final drive in a vs 800
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeby beachartist Tue Sep 14, 2021 6:28 am

» Hello from the USA
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeby wildcatvs800 Mon Sep 13, 2021 9:02 pm

» VX800 Forks failing after just a few days of simple use?
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeby Damion Jones Sun Sep 12, 2021 10:25 pm

» Hi there. 2012 Intruder M50
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeby jp.hindle@btinternet.com Thu Sep 09, 2021 6:37 pm

» 2008 Suzuki C800T genuine saddlebags
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeby Johnmc800 Thu Sep 09, 2021 5:53 pm

» List of mods - Bike is finally complete - Marauder VZ800
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeby botskabouter Fri Sep 03, 2021 11:40 am

» hello all,
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeby Petrolhead750 Thu Sep 02, 2021 7:51 pm

» Oil leak from 1994 VS800 Intruder - right side, but only while running
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeby MikeKKim Wed Sep 01, 2021 12:23 am

» New member saying hello
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeby Johnmc800 Tue Aug 31, 2021 3:39 pm

» E10 fuel in a 1990 VX800 - What can happen?
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeby Damion Jones Tue Aug 31, 2021 3:33 pm

» Rebaffle?
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeby Uneasy_Rider Sat Aug 28, 2021 3:14 pm

» Hello ... from the other side?
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeby Badger Fri Aug 27, 2021 12:47 pm

» VZ800 Starter Control Relay
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeby monkeyfarm Tue Aug 24, 2021 2:29 pm

» Hi newbie introduction.
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeby Badger Mon Aug 16, 2021 3:10 pm

» Hello all! Bought the intruder's naked cousin, still feel like family
Complete side mount reg prep & install - 2009 Suzuki C800 / C50 Icon_minitimeby Slurpysam Sat Aug 14, 2021 9:37 am

Log in
Username:
Password:
Log in automatically:
:: I forgot my password
