 Rear fender, finaly painted and mounted . 1998 suzuki VZ800

Go down
+5
alfie92
Perza80
simbo
MarcinG
twenty2
9 posters
AuthorMessage
twenty2
Member
twenty2


Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Empty
PostSubject: Rear fender, finaly painted and mounted . 1998 suzuki VZ800   Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Icon_minitimeMon Aug 12, 2013 10:11 pm

Just got the rear fender from the painter..... FINALY!

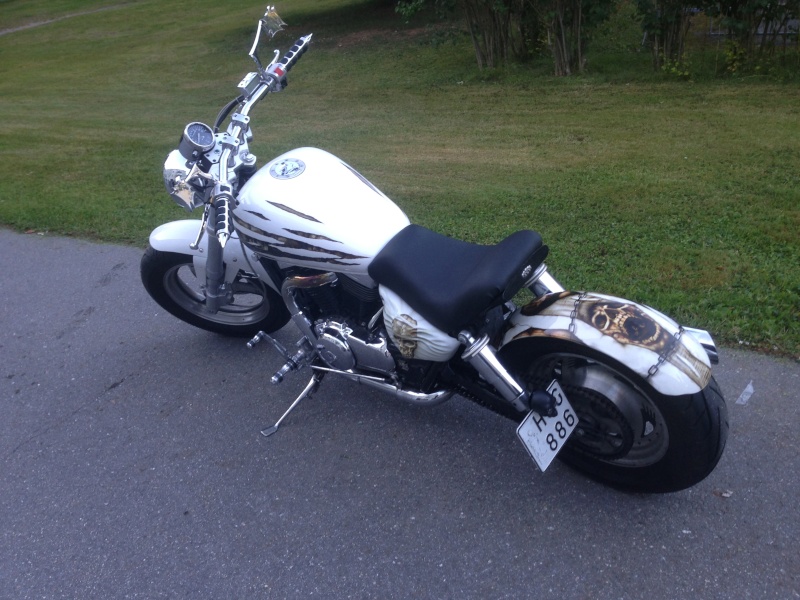

Im kinda satisfied with the way it all turned out.
Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Photo_10


Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Photo_11
Back to top Go down
MarcinG
Valued VIP Member
MarcinG


Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Empty
PostSubject: Re: Rear fender, finaly painted and mounted . 1998 suzuki VZ800   Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Icon_minitimeMon Aug 12, 2013 10:31 pm

Sweet looking!

Close-up's of the paint job please?
Also, this is one cool seat you got!
Back to top Go down
simbo
* Site Guru *
simbo


Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Empty
PostSubject: Re: Rear fender, finaly painted and mounted . 1998 suzuki VZ800   Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Icon_minitimeMon Aug 12, 2013 10:43 pm

It looks absolutely stunning! Rear fender, finaly painted and mounted . 1998 suzuki VZ800 102087026
Back to top Go down
twenty2
Member
twenty2


Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Empty
PostSubject: Re: Rear fender, finaly painted and mounted . 1998 suzuki VZ800   Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Icon_minitimeTue Aug 13, 2013 4:07 am

Thanks guys.

MarcinG: The seat is cusommade. Plastared the seatpan myself with flassfiber. Then left the seatpan to a shop that works with carseats, to have it padded and covered. Turned out really nice.

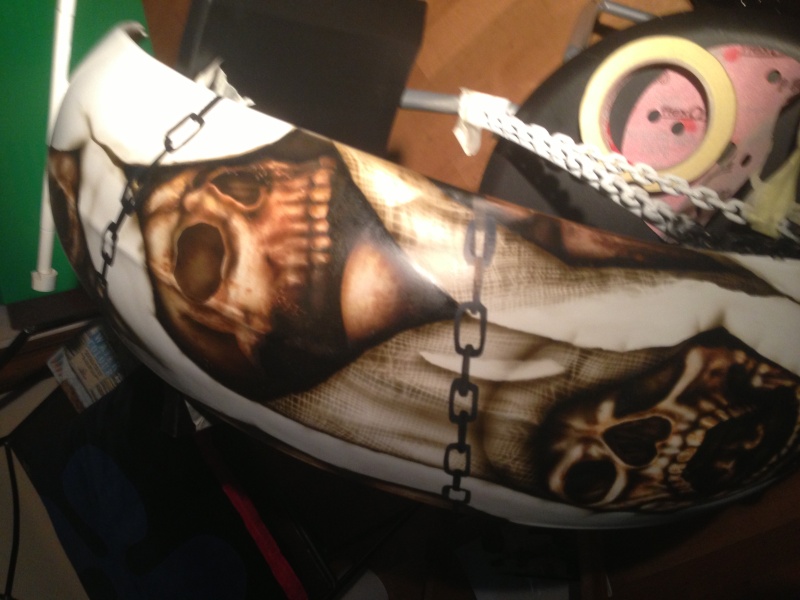

Heres a few closeups of the paintjob. Taken just before clear coating i think it was.

Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Photo_15

 Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Photo_16

Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Photo_17
Back to top Go down
Perza80
Prospect
Perza80


Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Empty
PostSubject: Re: Rear fender, finaly painted and mounted . 1998 suzuki VZ800   Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Icon_minitimeTue Aug 13, 2013 10:04 am

How did u install the front end of the rear fender?
Back to top Go down
twenty2
Member
twenty2


Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Empty
PostSubject: Re: Rear fender, finaly painted and mounted . 1998 suzuki VZ800   Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Icon_minitimeTue Aug 13, 2013 10:14 am

I Can fix som pictures and sketches when i get home tonight. So you see the Way i bolted it to the swing arm
Back to top Go down
Perza80
Prospect
Perza80


Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Empty
PostSubject: Re: Rear fender, finaly painted and mounted . 1998 suzuki VZ800   Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Icon_minitimeTue Aug 13, 2013 10:27 am

Awesome dude! Would be cool to borrow some ideas if u dont mind?
Back to top Go down
alfie92
Very Valued VIP Member
alfie92


Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Empty
PostSubject: Re: Rear fender, finaly painted and mounted . 1998 suzuki VZ800   Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Icon_minitimeTue Aug 13, 2013 2:50 pm

Looks great m8 well done.
Back to top Go down
scotland warrior
Member
scotland warrior


Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Empty
PostSubject: Re: Rear fender, finaly painted and mounted . 1998 suzuki VZ800   Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Icon_minitimeTue Aug 13, 2013 8:01 pm

great job bud looks Rear fender, finaly painted and mounted . 1998 suzuki VZ800 2037161312 Rear fender, finaly painted and mounted . 1998 suzuki VZ800 3039991824
Back to top Go down
bigmal
Very Valued VIP Member
bigmal


Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Empty
PostSubject: Re: Rear fender, finaly painted and mounted . 1998 suzuki VZ800   Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Icon_minitimeTue Aug 13, 2013 9:04 pm

Fantastic looking job Twenty 2. Rear fender, finaly painted and mounted . 1998 suzuki VZ800 2170595768

Hey Jim, is that a custom pillion seat? After riding to Germany clinging on the back, my wife would love that!
Back to top Go down
twenty2
Member
twenty2


Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Empty
PostSubject: Re: Rear fender, finaly painted and mounted . 1998 suzuki VZ800   Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Icon_minitimeTue Aug 13, 2013 11:03 pm

perza80: Tried to get some pictures to explain it but it wasnt easy to get good pictures where it all was visable.
what i have done.
Made 2 brackets with milled holes in them, and welded them to the swingarm. need to be milled holes so the fender can be moved when chain is tightened.

To get the fender fixed in the front i used a shaft about 10 or 12mm in diameter.  cut it in to 3 pieces, one threaded holes in both ends, the long one. Should be allmost the same lenght as the distance between the rear shocks. The reason i choose to make it in three parts was to be able to fit it without removing the rear shocks.

The other two have holes all the way through, a diameter 0,5mm bigger then the skrew that should fit in the threaded part of the shaft, Think i used M5 threads and the holes where made 5,5mm. The complete lenght of the three shafts put together should be the same as the distance between the brackets welded to the swingarm.

Made 2 special washers to be mounted on the outside of the bracket to hide the screws a bit.

Put the fender in the position you want, i used ½" hose as a distance between the wheel and the fender to get enough space there, assebble the 3 pieces of the shaft and put it in place so it goes against the fender - Weld it in place.

For a momentum arm i welded chain togheter. Dont think in need to explain that further Wink
To fit the momentum arm to the rear part of the bike i made a new distance that sits between the wheel and the swing arm. to fit the momentum arm in that distance i decided not to weld it but instedad make a bracket that is a half pipe that have the same inner diamater as the distance have outer diameter and  just fix it with skews.

Some pictures that might come in handy.
Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Photo_18
Front part.... bracket, shaft and washer

Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Photo_19
Rear part: Distance and half pipe assembled
Back to top Go down
Perza80
Prospect
Perza80


Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Empty
PostSubject: Re: Rear fender, finaly painted and mounted . 1998 suzuki VZ800   Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Icon_minitimeSat Aug 17, 2013 7:06 am

Cool :)
Back to top Go down
fat intruder
Very Valued VIP Member
fat intruder


Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Empty
PostSubject: Re: Rear fender, finaly painted and mounted . 1998 suzuki VZ800   Rear fender, finaly painted and mounted . 1998 suzuki VZ800 Icon_minitimeSat Aug 17, 2013 8:26 am

love the shape of it and the look it brings to the bike Rear fender, finaly painted and mounted . 1998 suzuki VZ800 428386
