 Custom fiberglass rear fender for M800

Go down
Go to page : 1, 2  Next
AuthorMessage
DocSjulle
Hero Globs
DocSjulle


Custom fiberglass rear fender for M800 Empty
PostSubject: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeMon May 26, 2014 6:33 pm

Hi.

Even before I bought the M800, I started looking for options to change the rear fender, as I would like a more slender look and lines which flows from the bars towards the rear.

I have nearly completed the fender, just waiting for the rear and turn signal lights.

The fabrication consist of three stages.

First the male plug was designed and tweaked until I was satisfied with the form of it, and it was smooth enough to cast the female mold on.
Then the female mold was made and wet sanded and waxed.

And finally the fender was cast in the female mold.

The fender has a black gel coat, and it will be polished and used until I´ll get the correct paint and paint it at a later stage.

The license plate will be mounted below the fender, but I need the rear light before I can design the plate holder.

Custom fiberglass rear fender for M800 IMAGE_56

Custom fiberglass rear fender for M800 IMAGE_57

Custom fiberglass rear fender for M800 IMAGE_60

Custom fiberglass rear fender for M800 IMAGE_62

Custom fiberglass rear fender for M800 IMAGE_63

Custom fiberglass rear fender for M800 IMAGE_10

Custom fiberglass rear fender for M800 IMAGE_64

Custom fiberglass rear fender for M800 IMAGE_65

Custom fiberglass rear fender for M800 IMAGE_67

Custom fiberglass rear fender for M800 IMAGE_66

Custom fiberglass rear fender for M800 IMAGE_71

Custom fiberglass rear fender for M800 IMAGE_69

Custom fiberglass rear fender for M800 IMAGE_70

Custom fiberglass rear fender for M800 IMAGE_72

Custom fiberglass rear fender for M800 IMAGE_74

Custom fiberglass rear fender for M800 IMAGE_75

Custom fiberglass rear fender for M800 IMAGE_11

Custom fiberglass rear fender for M800 IMAGE_12

Custom fiberglass rear fender for M800 IMAGE_13

Custom fiberglass rear fender for M800 IMAGE_16

Custom fiberglass rear fender for M800 IMAGE_17
Back to top Go down
alfie92
Very Valued VIP Member
alfie92


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeMon May 26, 2014 6:41 pm

Excellent piece of work Kim well done.
Back to top Go down
simbo
* Site Guru *
simbo


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeMon May 26, 2014 7:09 pm

Your a talented man Kim! Very nice job  Custom fiberglass rear fender for M800 276246  Custom fiberglass rear fender for M800 102087026
Back to top Go down
Lowey
Valued Member
Lowey


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeMon May 26, 2014 7:14 pm

Excellent job, very clever man.
Back to top Go down
peardrop3
Very Valued VIP Member
peardrop3


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeMon May 26, 2014 7:18 pm

Looking good Kim, true dedication there. Are you trained as a body shop man by any chance?

 Custom fiberglass rear fender for M800 2170595768  Custom fiberglass rear fender for M800 996187811  Custom fiberglass rear fender for M800 276246
Back to top Go down
captain crash
Mentally Deficient lunatic ..... & ..... Site Moderator
captain crash


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeMon May 26, 2014 7:45 pm

O wow what a great bit of work, ace to see a craftsman at work. You have done an ace job and should be so proud of what you have done, its amazing. Gotta agree with the others  Custom fiberglass rear fender for M800 276246
The world is your oyster with skills like that, fiber glassing is an art and your an artist  Custom fiberglass rear fender for M800 184121345
Back to top Go down
DocSjulle
Hero Globs
DocSjulle


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeMon May 26, 2014 8:18 pm

Thx for your replies, and no I´m not trained in a body shop Very Happy   but an Electronic technician by education, although I have always worked with IT.

I just like to modify and build stuff, and to do that I have had to learn many skills.
Back to top Go down
MarcinG
Valued VIP Member
MarcinG


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeMon May 26, 2014 8:22 pm

And that's how I shall approach my custom taildragger.
No clue so far though how to fabricate these brilliant pieces of wood to start with...
Needs tools...POWER TOOLS!!! POWEEEEERRR!!!!


ekhm...what was I..oh yes...brilliant job mate  Custom fiberglass rear fender for M800 215375
Back to top Go down
TaurusTuga
Member
TaurusTuga


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeMon May 26, 2014 9:26 pm

Very nice, many hours of hard work, well done. Custom fiberglass rear fender for M800 3005623951  Custom fiberglass rear fender for M800 3005623951
Excellent job Custom fiberglass rear fender for M800 3498837457
Back to top Go down
fat intruder
Very Valued VIP Member
fat intruder


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeMon May 26, 2014 9:58 pm

love it
Back to top Go down
Mr Intruder
Suzuki800.com Founder ... & ... Senior Administrator
Mr Intruder


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeTue May 27, 2014 9:46 am

You have done an amazing job Kim, I am very impressed with the result. It firstly has a great felling to be a little different from other but with a huge amount of satisfaction to of done that yourself. Well done Kim, what an excellent job.  Custom fiberglass rear fender for M800 65147
Back to top Go down
bigmal
Very Valued VIP Member
bigmal


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeTue May 27, 2014 10:29 pm

Wow, you've got some serious skills there!
Back to top Go down
MarcinG
Valued VIP Member
MarcinG


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeTue May 27, 2014 10:53 pm

Kim, any chance on a detailed write up?
What products, what materials, how, etc

I'd appreciate it a lot.
Back to top Go down
bigmal
Very Valued VIP Member
bigmal


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeTue May 27, 2014 11:12 pm

I bet the hard part is actually getting the wooden plug bang on.... Any discrepancies, blemishes, etc in that, are just going to get replicated.
Back to top Go down
DocSjulle
Hero Globs
DocSjulle


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeTue May 27, 2014 11:44 pm

MarcinG wrote:
Kim, any chance on a detailed write up?
What products, what materials, how, etc

I'd appreciate it a lot.

I'll try to write a small guide.

Cut the two side panels out of cheap thin plywood using a jigsaw.
Then cut the small "bridge" pieces that go in between the sides.

Now mount it on the bike and glue it up using whatever glue you prefer, I used ordinary white glue. You need to be a little precise here, and place them in the same plane relative to the curve on your side panels, or you will spend even more time sanding.

This fender needed to be a bit narrower under the seat, so I glued another small piece of plywood here, making sure the seat would still fit.

When the wood structure is complete and the glue is cured, you place some kind of stretch fabric over the wood and staple it to the edges. I used a cheap fleece blanket from IKEA.

Then you coat the fabric with polyester resin, remember only to use 2% catalyst/hardener to give you enough time for working. Make sure you soak the fabric with resin.

When the resin is cured the fabric is hardened, and you can now use polyester filler to work up to the desired shape.

It usually takes many times of filler and sanding to get a proper shape.

When you a satisfied with the shape, you need to make the mould as smooth as possible, because when you cast the next mould on top of this one, it will grip every little hole and scratch and could make it hard to pull away from the mould.

Another reason is that all the defects will show up in the next mould.

So spend some time wet sanding it smooth.

When it is smooth you need to wax it to prevent it from sticking to the next mould.
I also use a release agent called PVA, which is either sprayed or brushed on thin with a foam brush.

When this is dry you can start making the next mould, and you start with a coat of gelcoat. This is then allowed the cure for 30-120min, or until it is hard but still sticky.

Then you start laying up fiberglass with polyester resin, making sure the pieces overlap and that there are no air bubbles in between.
It's a good idea to buy plenty of cheap brushes for this, as you will only use them once.

Take care not to put too many layers too thick at the same time, as the first layers will start to cure and generate heat, causing the next layers to cure too. If you are not careful, it will turn brown and start to smoke, and it could catch on fire.

Then just work you way up to the desired thickness.

Another thing to remember is not mixing up more resin than you can use in about 20 min, as it will start to turn to gel, and it is useless.

You can pull the two moulds apart when the fiberglass is cured and hard.

Now you should have a nice and smooth female mould, which should require little to no wet sanding. You repeat the above process for making the final fender.

That is: Polish, wax, release agent, gelcoat and fiberglass.
Back to top Go down
DocSjulle
Hero Globs
DocSjulle


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeTue May 27, 2014 11:47 pm

bigmal wrote:
I bet the hard part is actually getting the wooden plug bang on.... Any discrepancies, blemishes, etc in that, are just going to get replicated.

Exactly, but as you have the gelcoat of the female mould you can wet sand and polish the last of the sanding scratches away.

But you are correct, everything get replicated.
Back to top Go down
MarcinG
Valued VIP Member
MarcinG


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeTue May 27, 2014 11:54 pm

Thanks for that... that's a keeper for when I get around doing mine :)
 Custom fiberglass rear fender for M800 433968  Custom fiberglass rear fender for M800 3005623951
Back to top Go down
Mr Intruder
Suzuki800.com Founder ... & ... Senior Administrator
Mr Intruder


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeWed May 28, 2014 5:41 am

Excellent write up Kim.  Custom fiberglass rear fender for M800 3005623951
Back to top Go down
alfie92
Very Valued VIP Member
alfie92


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeWed May 28, 2014 10:08 am

Custom fiberglass rear fender for M800 276246 on the write up Kim,well explained.
Back to top Go down
DocSjulle
Hero Globs
DocSjulle


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeFri Jun 06, 2014 11:41 am

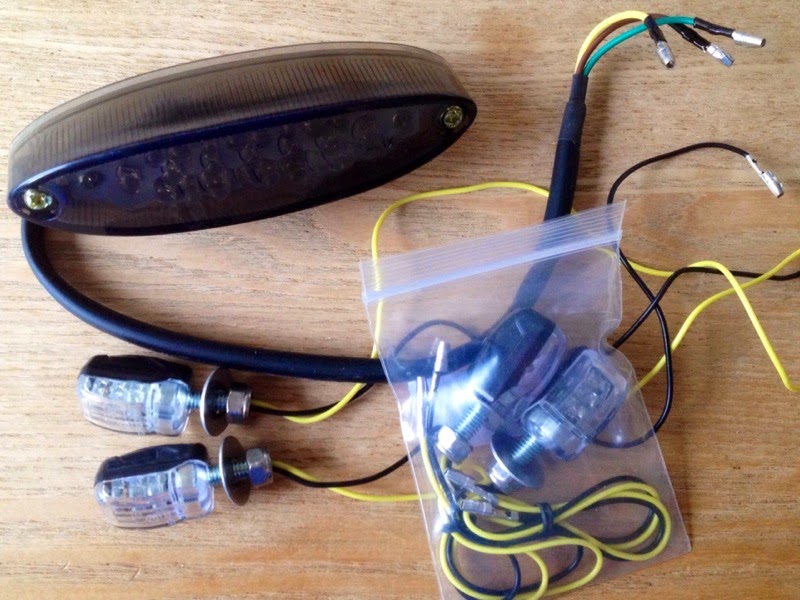

I have received the rear/brake light and the signals, but I think the rear light is too small, and I have got the idea that it would look cool with a dual rear light, when I want a dual head light.

So I ordered another rear light of ebay.

More waiting..........

Custom fiberglass rear fender for M800 IMAGE_27
Back to top Go down
captain crash
Mentally Deficient lunatic ..... & ..... Site Moderator
captain crash


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeFri Jun 06, 2014 2:30 pm

I think it will look good as is, the light may be small but remember they are LEDs so the are bright. It's size has nothing to do bright it is compared to normal light bulb lights. I think less is more and less is the way to go with your rear fender. I like the size of the indicators as well. I know its all down to personal choice and I have no doubt how you choose to do it will look spot on cause you have the vision and can see how it will look in place by holding it against you rear guard
Back to top Go down
DocSjulle
Hero Globs
DocSjulle


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeFri Jun 06, 2014 2:52 pm

I haven't decided anything yet, and will wait for the new tail lights to do so.

This is the dual light I have ordered.

Custom fiberglass rear fender for M800 Rearlight

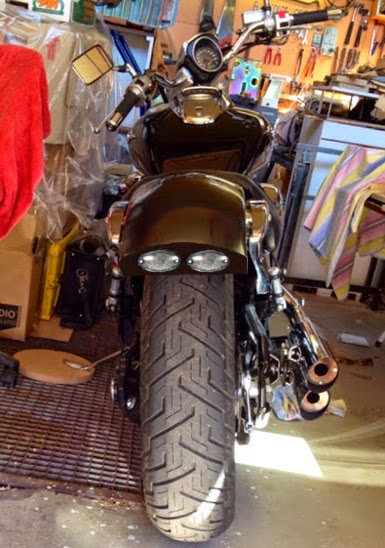

And here is a quick photoshop mockup. Imagine the license plate below the light and I think it will look nice.

Custom fiberglass rear fender for M800 Rearlight%232
Back to top Go down
bigmal
Very Valued VIP Member
bigmal


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeFri Jun 06, 2014 5:22 pm

Very nice indeed.

Are they combined indicators too? I might be dreaming, but I recollect someone here having issues with led indicators because they draw nowhere near the same load as ordinary bulbs.

Hopefully someone who knows their arse from their elbow will chime in!
Back to top Go down
alfie92
Very Valued VIP Member
alfie92


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeFri Jun 06, 2014 5:31 pm

That is going to look sound Kim,as Mal stated about the draw power of LED but I have a feeling with you having the background in electrics it should not cause a problem.Always nice for people to talk about the problems that might arise,for it gives you a better insight before you tackle the job.Nice one Mal.
Back to top Go down
captain crash
Mentally Deficient lunatic ..... & ..... Site Moderator
captain crash


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeFri Jun 06, 2014 5:45 pm

O yes now that double rear light setup looks friggin ace the way you have shown it in the pic  Custom fiberglass rear fender for M800 102087026
Back to top Go down
Mr Intruder
Suzuki800.com Founder ... & ... Senior Administrator
Mr Intruder


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeFri Jun 06, 2014 6:42 pm

I believe your bike will look fabulous, love the dual use lights anyway but especially when used in the way you have planned. Well thought out.  Custom fiberglass rear fender for M800 65147
Back to top Go down
barky
Member



Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeFri Jun 06, 2014 7:08 pm

Looking good!
Back to top Go down
simbo
* Site Guru *
simbo


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeFri Jun 06, 2014 7:24 pm

That will look very nice indeed sir!  Custom fiberglass rear fender for M800 102087026
Back to top Go down
Ken1964
Valued Member
Ken1964


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeFri Jun 06, 2014 8:19 pm

Very nice indeed.
Back to top Go down
OldManYam
Very Valued VIP Member
OldManYam


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeSat Jun 07, 2014 11:42 am

Great posting Kim,

I've done some fibreglass laminating in the past & always had to work from 'first principles' and your information should really help anyone who wants to try out some custom fabrication.

I've used timber, cardboard & ureathene type foams as base materials for some rough bucks, then built them up with chopped strand, then applied filler & sanded back to the profile I wanted. This can be trial fitted etc. - then make the female mould.

 Ureathene type foams are generally beige in colour (e.g. Kingspan insulation boards - the core foam Not the backing material). The generally/commonly available Ploystyrene type foams dissolve in the polyester resin so cannot be used as a base without a protective skin.

You always have to be wary that there is no reverse taper in your chosen shape if you intend to do a 'one-piece' female mould ..... (or you get a mechanical lock with your moulded component & the mould & would find it difficult/impossible to release without damage to one or the other. You can cope with reverse tapers - but you then have to make a 'two-piece' mould. I used to build a false fence on the buck and lay up the first part of the female mould, then when cured, remove the false fence and lay up the second part of the mould against the first one.

Fibre glass work is not difficult, but it does need patience. I mastered the basic skills as a schoolboy & have dabbled a bit over the years. I have found that when I've given fibreglass products to friends for repair work, then about 50% of people mange OK - the rest tend to get frustrated & loose patience.

If you did fancy a go, I would suggest you practice on doing a small moulding first (Preferably not related to your bike - as you don't want to spoil any of your existing components if you make a mistake.  By practicing on something small, you will find out if you have the patience for a bigger project .... but I would urge people to have a go if they think it is their bag, as it is very satisfying to make a mould the produce a special item.

I use 'Glassplies' in Southport for my supplier - they used to be really good on price, especially if you called at the depot. They remain competitively priced and they do operate mail order. The sell everything you will need including resins, Chopped Strand Mat (aka CSM), woven rovings, cloths (Glass, dyneema, Kevlar & Carbon if you are flush !), tapes, release agents, protective gloves, barrier creams, etc. They also used to be keen with their wet & dry paper prices. Worth a look !
Cheers folks  Custom fiberglass rear fender for M800 256401  Yam
Back to top Go down
22Reed
Member
22Reed


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeFri Jun 27, 2014 6:54 pm

thats the way the rear fender should have been done by suzuki :)

great job there  ilis
Back to top Go down
captain crash
Mentally Deficient lunatic ..... & ..... Site Moderator
captain crash


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeSun Jul 06, 2014 10:26 am

I agree that looks friggin ace. Best rear guard I have ever seen on an M
Back to top Go down
DocSjulle
Hero Globs
DocSjulle


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeSun Jul 06, 2014 10:38 am

Thx for your kind words.

I have received the dual rearlights, but have not had time to continue with the project, due to working on getting my boat ready for the vacation, and battling the flu for nearly two weeks now.
Back to top Go down
katsd
Very Valued VIP Member
katsd


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeSun Jul 06, 2014 4:16 pm

Hi Kim.

I had a these lights as a stop-gap till I finished the job how I wanted it to be < https://www.suzuki800.com/t3298-stripped-down-look-wanted-2001-vl800-now-done > .  If you have the same set I had, you'll find there are no seals in the lens, which concerned me that water would work it's way in.  I used copious amounts of silicone grease, which seemed to work.  I may be telling how to suck eggs here, but you're going to need either in-line resistors or a new indicator relay as they'll flash at twice the normal rate.  I went for a relay as you can just swap the original one for it.  I also found out that they're illegal in the UK as you have to have a 180 mm gap between the indicators - never got pulled for it though.

Looking good so far  !!!!
Back to top Go down
bigmal
Very Valued VIP Member
bigmal


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeSun Jul 06, 2014 4:18 pm

That a great idea with the silicone grease.... Keeps the moisture out but lens can still be removed  Custom fiberglass rear fender for M800 184121345
Back to top Go down
DocSjulle
Hero Globs
DocSjulle


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeSun Jul 06, 2014 5:05 pm

katsd wrote:
Hi Kim.

I had a these lights as a stop-gap till I finished the job how I wanted it to be < https://www.suzuki800.com/t3298-stripped-down-look-wanted-2001-vl800-now-done > .  If you have the same set I had, you'll find there are no seals in the lens, which concerned me that water would work it's way in.  I used copious amounts of silicone grease, which seemed to work.  I may be telling how to suck eggs here, but you're going to need either in-line resistors or a new indicator relay as they'll flash at twice the normal rate.  I went for a relay as you can just swap the original one for it.  I also found out that they're illegal in the UK as you have to have a 180 mm gap between the indicators - never got pulled for it though.

Looking good so far  !!!!

Hi Dave.

These are not "E" marked, so not legal in DK either, but I´m gonna replace the yellow leds with red ones, for more rear and stop light output, and then use some seperate turn signal lights.

I think it has a small seal around the lens, but I make sure to check it when I mount it.
Back to top Go down
katsd
Very Valued VIP Member
katsd


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeSun Jul 06, 2014 5:24 pm

Good idea - I found them bright enough, but I knew I wasn't going to be keeping that set up.  And I'm not competent enough to start trying to swap LEDs - I'd end up melting the whole thing !!
Back to top Go down
DocSjulle
Hero Globs
DocSjulle


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeWed Sep 17, 2014 6:32 am

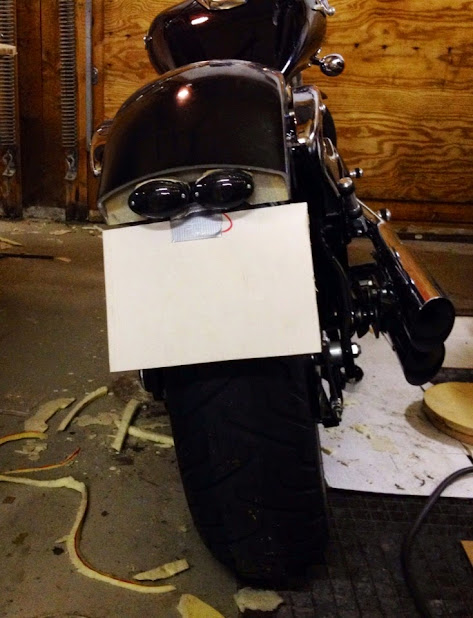

I have finally made a bit of progress on the fender.

A small plate was glassed in place and holes made for the lights. Then the rear light assembly was plastered to the fender.
But I did not like the idea it was plastered together, and thought the end would be too bulky. So I removed everything again and started over.

This time I placed a small plate further in from the back of the fender, and made holes for the rear of the lights instead. This means the rear light assembly will be screwed in from the outside instead.

But I´m not sure if the lights are a bit too close together, and made a paint mockup to try and decide if I should move the lights away from each other.

What do you guys think, I need some more eyes on this ?

Custom fiberglass rear fender for M800 IMAGE_45

Custom fiberglass rear fender for M800 8tunkJ1uL2WdsSWZskd8tK56wR2-Bi8ttraMI1D8-l0=w824-h618-no

Custom fiberglass rear fender for M800 IMAGE_48

Custom fiberglass rear fender for M800 Rearlight
Back to top Go down
katsd
Very Valued VIP Member
katsd


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeWed Sep 17, 2014 8:27 am

Bottom left photo for me - they fill the space out better
Back to top Go down
Mr Intruder
Suzuki800.com Founder ... & ... Senior Administrator
Mr Intruder


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeWed Sep 17, 2014 8:32 am

Really like what you have now done. I like the second from last photo mock-up,with the larger gap and an equal gap between the lights & the fender sides.
Back to top Go down
katsd
Very Valued VIP Member
katsd


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeWed Sep 17, 2014 8:33 am

Yep - that's the one I meant
Back to top Go down
OldManYam
Very Valued VIP Member
OldManYam


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeWed Sep 17, 2014 8:35 am

Yep - bottom left looks best option to me too ..... nice work Kim ... we can see you've been busy !
Custom fiberglass rear fender for M800 3005623951  Yam
Back to top Go down
DocSjulle
Hero Globs
DocSjulle


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeWed Sep 17, 2014 10:48 am

great, thx guys, you have confirmed I need to spread them out a bit.

Again more work as I can´t reuse the license plate mount, and have to make a new one.
Back to top Go down
DocSjulle
Hero Globs
DocSjulle


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeWed Sep 17, 2014 12:39 pm

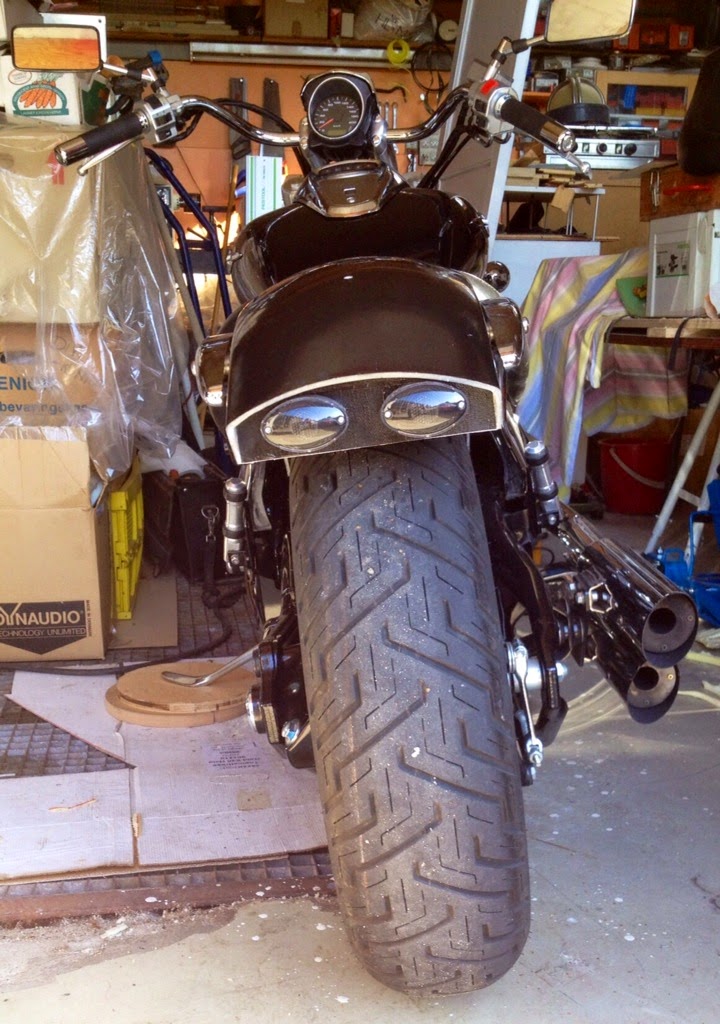

Much better looking with the lights spaced out evenly.

I added some black duct tape to make it closer to the finished idea.

Custom fiberglass rear fender for M800 IMAGE_94
Back to top Go down
simbo
* Site Guru *
simbo


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeWed Sep 17, 2014 6:25 pm

Looking good!  Custom fiberglass rear fender for M800 2170595768
Back to top Go down
bigmal
Very Valued VIP Member
bigmal


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeWed Sep 17, 2014 6:33 pm

you've got some real skills Kim!
Back to top Go down
captain crash
Mentally Deficient lunatic ..... & ..... Site Moderator
captain crash


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeThu Sep 18, 2014 10:19 am

Yep i like bottom left one,  have some serious skills
Back to top Go down
peardrop3
Very Valued VIP Member
peardrop3


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeThu Sep 18, 2014 7:27 pm

As the rest Kim bottom left one mate!
Back to top Go down
DocSjulle
Hero Globs
DocSjulle


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeTue Sep 23, 2014 9:22 am

Yesterday I got the fender tidied up a bit by adding two more layers of fiberglass at the rear light plate, and sanded everything to make it ready for the topcoat.

Today the license plate bracket was modified to fit the spaced out lights.

I'm very pleased by the results  Custom fiberglass rear fender for M800 102087026

Custom fiberglass rear fender for M800 IMAGE_95

Custom fiberglass rear fender for M800 IMAGE_96

Custom fiberglass rear fender for M800 IMAGE_97

Custom fiberglass rear fender for M800 IMAGE_98

Custom fiberglass rear fender for M800 IMAGE_99
Back to top Go down
katsd
Very Valued VIP Member
katsd


Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitimeTue Sep 23, 2014 3:12 pm

That's looking good l have a spare set of the same lightsyou're welcome to if you want totry something different
Back to top Go down
Sponsored content




Custom fiberglass rear fender for M800 Empty
PostSubject: Re: Custom fiberglass rear fender for M800   Custom fiberglass rear fender for M800 Icon_minitime

Back to top Go down

Custom fiberglass rear fender for M800
Back to top
Page 1 of 2Go to page : 1, 2  Next
 Similar topics
-
» Right Rear Fender color Orange Madness
» Craftsman Off road
» Suzuki Quadrunner 4x4 For Sale
» Teryx sway bar
» Does back glass help on the rzr s?

Permissions in this forum:You cannot reply to topics in this forum
Suzuki 800 Intruder Club & Forum :: The Garage :: General Aftermarkets & Modifications-
Jump to:
Slide Show
A random selection of suzuki800.com member bikes.
Latest topics
» VS800 Rear Wheel to VL800 ?
Custom fiberglass rear fender for M800 Icon_minitimeby Badger Today at 10:54 am

» Introduction
Custom fiberglass rear fender for M800 Icon_minitimeby Badger Today at 10:47 am

» Hello
Custom fiberglass rear fender for M800 Icon_minitimeby Badger Today at 10:46 am

» Hello
Custom fiberglass rear fender for M800 Icon_minitimeby ImpMan71 Yesterday at 5:49 pm

» Hello and please help from South Africa
Custom fiberglass rear fender for M800 Icon_minitimeby Wayne V Yesterday at 8:27 am

» Newbie from Kent VX800 just purchased
Custom fiberglass rear fender for M800 Icon_minitimeby Badger Wed Jun 23, 2021 9:38 pm

» Hi from Cornwall
Custom fiberglass rear fender for M800 Icon_minitimeby Badger Sun Jun 20, 2021 8:44 pm

» left side cover lock
Custom fiberglass rear fender for M800 Icon_minitimeby rosie Thu Jun 17, 2021 9:36 pm

» hi
Custom fiberglass rear fender for M800 Icon_minitimeby ike Wed Jun 16, 2021 2:40 pm

» Indicator thread nut
Custom fiberglass rear fender for M800 Icon_minitimeby cavanimal Wed Jun 16, 2021 9:20 am

» Hi everyone
Custom fiberglass rear fender for M800 Icon_minitimeby Badger Mon Jun 14, 2021 8:49 pm

» 1999 marauder fuse wiring
Custom fiberglass rear fender for M800 Icon_minitimeby fire321 Sun Jun 06, 2021 9:24 am

» EFI conversion on VS800
Custom fiberglass rear fender for M800 Icon_minitimeby DIYer Fri Jun 04, 2021 9:39 pm

» VX800 yet another petcock/fuel tap thread....sorry!
Custom fiberglass rear fender for M800 Icon_minitimeby mcitours Fri Jun 04, 2021 11:32 am

» Hi Everyone, looking forward to the craic
Custom fiberglass rear fender for M800 Icon_minitimeby Badger Fri Jun 04, 2021 8:55 am

» Footboards clean up.
Custom fiberglass rear fender for M800 Icon_minitimeby Badger Thu Jun 03, 2021 9:00 pm

» Newbie
Custom fiberglass rear fender for M800 Icon_minitimeby Badger Thu Jun 03, 2021 8:25 pm

» We bobber vs 800
Custom fiberglass rear fender for M800 Icon_minitimeby Badger Thu Jun 03, 2021 8:24 pm

» Hello from St. Johns, Michigan
Custom fiberglass rear fender for M800 Icon_minitimeby Badger Fri May 28, 2021 10:21 am

» Programmable Gear Readout
Custom fiberglass rear fender for M800 Icon_minitimeby RetiredNotDead Thu May 27, 2021 10:19 pm

Log in
Username:
Password:
Log in automatically:
:: I forgot my password
